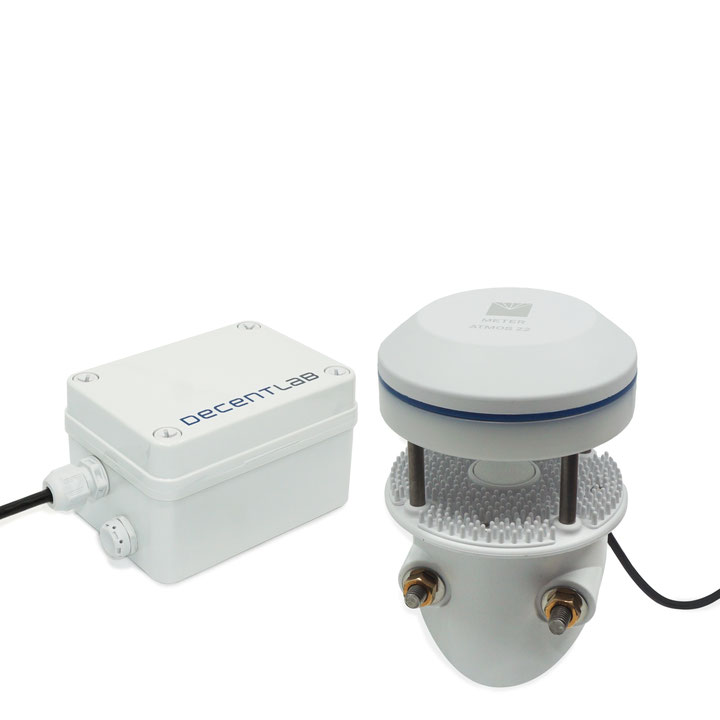

DL-ATM22

Wind Speed, Wind Direction and Temperature Sensor for LoRaWAN®

Made by
Decentlab is a certified partner.

Description

Sensor data are transmitted in real-time using LoRaWAN® radio technology. LoRaWAN® enables encrypted radio transmissions over long distances while consuming very little power. The user can obtain sensor data through Decentlab’s data storage and visualization system, or through the user's own infrastructure. Visit www.decentlab.com for more information about Decentlab's data cloud service.

APPLICATIONS

  • Smart agriculture
  • Urban heat islands
  • Building automation
# End Device
# Environment Monitoring
# EU 863-870
# Logistics
# Outdoor
# Smart City
# US 902-928

Specifications

HORIZONTAL WIND SPEED

  • Range: 0 … 30 m/s
  • Resolution: 0.01 m/s
  • Accuracy: the greater of 0.3 m/s or 3% of measurement

WIND GUST

  • Range: 0 … 30 m/s
  • Resolution: 0.01 m/s
  • Accuracy: the greater of 0.3 m/s or 3% of measurement

WIND DIRECTION

  • Range: 0 … 359°
  • Resolution: 1°
  • Accuracy: ±5°

TILT

  • Range: -90° … +90°
  • Resolution: 0.1°
  • Accuracy: ±1°

TEMPERATURE

  • Range: -50 ... +60 °C
  • Resolution: 0.1 °C
  • Accuracy: ±0.6 °C, not protected from solar radiation

Technical details

  • LoRaWAN™ class A

  • 2 C alkaline batteries

Dimensions

  • Device: 13.5 cm × 8.1 cm × 7 cm
  • Sensor: 10 x 10 x 16 cm
  • 5 m cable

Reference DL-ATM22

Datasheet and decoder on www.decentlab.com/support
