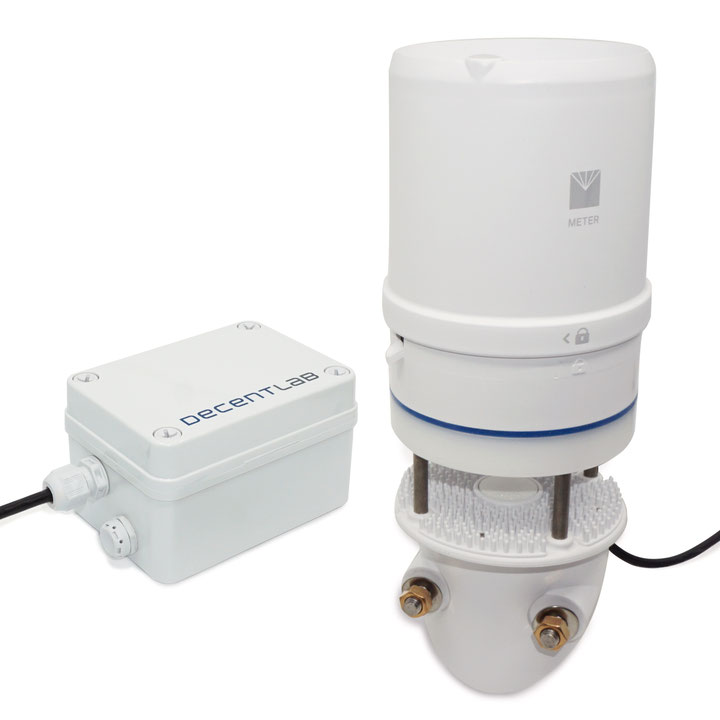

DL-ATM41

Eleven Parameter Weather Station for LoRaWAN®

Made by
Decentlab is a certified partner.
Contact this partner →

Description

Sensor data are transmitted in real-time using LoRaWAN® radio technology. LoRaWAN® enables encrypted radio transmissions over long distances while consuming very little power. The user can obtain sensor data through Decentlab’s data storage and visualization system, or through the user's own infrastructure.

Visit www.decentlab.com for more information about Decentlab's data cloud service.

APPLICATIONS

  • Smart agriculture
  • Urban heat islands
  • Frost alarming
  • Micro climate
  • Building automation
# End Device
# Environment Monitoring
# EU 863-870
# Outdoor
# Smart City
# US 902-928

Specifications

SOLAR RADIATION

  • Range: 0 … 1’750 W/m²
  • Resolution: 1 W/m²
  • Accuracy: ±5% of measurement typical

PRECIPITATION

  • Range: 0 … 400 mm/h
  • Resolution: 0.017 mm
  • Accuracy: ±5% of measurement from 0 … 50 mm/h

VAPOR PRESSURE

  • Range: 0 … 47 kPa
  • Resolution: 0.01 kPa
  • Accuracy: ±0.2 kPa typical below 40 °C

RELATIVE HUMIDITY

  • Range: 0 … 100% RH
  • Resolution: 0.1% RH
  • Accuracy: ±3% RH typical

AIR TEMPERATURE

  • Range: -50 ... +60 °C
  • Resolution: 0.1 °C
  • Accuracy: ±0.6 °C

BAROMETRIC PRESSURE

  • Range: 50 … 110 kPa
  • Resolution: 0.01 kPa
  • Accuracy: ±0.1 kPa from -10 … 50 °C, ±0.5 kPa from -40 … 60 °C

HORIZONTAL WIND SPEED

  • Range: 0 … 30 m/s
  • Resolution: 0.01 m/s
  • Accuracy: the greater of 0.3 m/s or 3% of measurement

WIND GUST

  • Range: 0 … 30 m/s
  • Resolution: 0.01 m/s
  • Accuracy: the greater of 0.3 m/s or 3% of measurement

WIND DIRECTION

  • Range: 0 … 359°
  • Resolution: 1°
  • Accuracy: ±5°

TILT

  • Range: -90° … +90°
  • Resolution: 0.1°
  • Accuracy: ±1°

LIGHTNING STRIKE COUNT

  • Range: 0 … 65’535 strikes
  • Resolution: 1 strike
  • Accuracy: variable with distance, >25% detection at \<10km typical

LIGHTNING AVERAGE DISTANCE

  • Range: 0 … 40 km
  • Resolution: 3 km
  • Accuracy: variable

Technical details

  • LoRaWAN™ class A
  • 2 C alkaline batteries

Dimensions

  • Device: 13.5 cm × 8.1 cm × 7 cm
  • Sensor: 10 x 10 x 34 cm

  • 5 m cable

  • Reference DL-ATM41

Datasheet and decoder on www.decentlab.com/support
