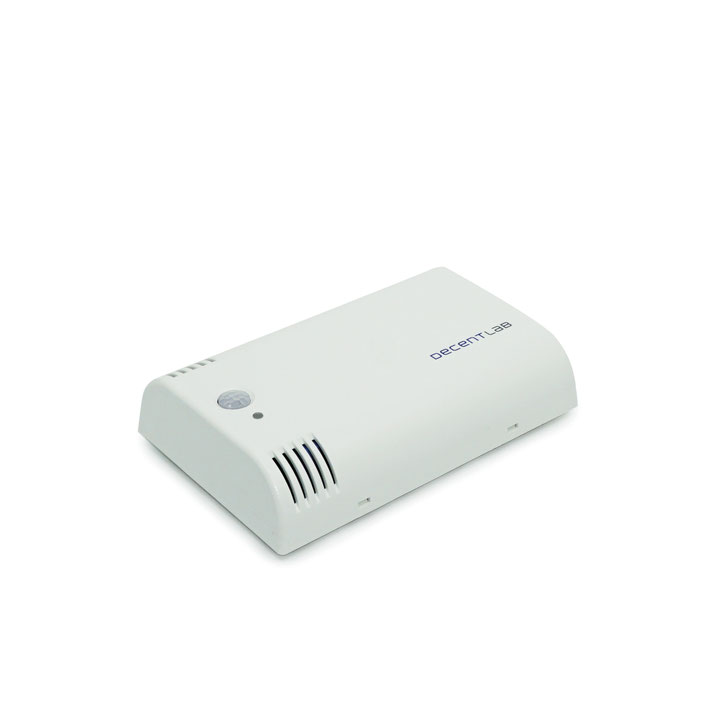

DL-IAM

Indoor Ambiance Monitor including CO2, TVOC and Motion Sensor for LoRaWAN®

Made by
Decentlab is a certified partner.
Contact this partner →

Description

Decentlab’s indoor ambiance monitor continuously measures carbon dioxide (CO2) concentration, volatile organic compounds (VOC), temperature, humidity, barometric pressure, ambient light and motion / presence. These data allow to quantify the air quality, temperature and illumination (ambiance) in offices, class rooms, hospitals, stores or malls. These data also indicate the presence of people and how they move in a room. This allows to efficiently control heating, ventilation, air conditioning (HVAC) and illumination corresponding to the actual situation in a specific room.
Sensor data are transmitted in real-time using LoRaWAN® radio technology. LoRaWAN® enables encrypted radio transmissions over long distances while consuming very little power. The user can obtain sensor data through Decentlab’s data storage and visualization system, or through the user's own infrastructure. Visit www.decentlab.com for more information about Decentlab's data cloud service.

APPLICATIONS

  • Indoor air quality monitoring in offices, class rooms, hospitals, stores or malls.
  • Office occupancy monitoring.
  • Motion / activity monitoring of people in a room.
  • Heating, ventilation and air conditioning (HVAC) control: for good indoor air quality and energy savings.
  • Process yield and economic efficiency: e.g. in greenhouses, mushroom farming, food packaging, transportation/storage, chicken hatcheries and incubators.
  • Personal safety: in confined spaces where combustion is present or gas leakage could occur such as garages, tunnels, public bars, restaurants or burners.
# End Device
# Environment Monitoring
# EU 863-870
# Indoor
# US 902-928

Specifications

CO₂
Range: 0 ... 10'000 ppm
Accuracy: ±50 ppm, ±3% of reading

TOTAL VOLATILE ORGANIC COMPOUNDS
Range: 0 ... 60'000 ppb
Accuracy: typically 15% of measured value

TEMPERATURE
Range: -40 ... + 125 °C
Accuracy: ±0.3 °C

RELATIVE HUMIDITY
Range: 0 ... 100% RH
Accuracy: ±2% RH

BAROMETRIC PRESSURE
Range: 300 ... 1'100 hPa
Accuracy: ±1 hPa absolute, ±0.12 hPa relative

AMBIENT LIGHT INTENSITY
Brightness indicator

MOTION
PIR motion sensor measuring activity level

Technical details

  • LoRaWAN™ class A
  • 2 AA alkaline batteries
  • 12 cm x 8 cm x 2.5 cm
  • Reference DL-IAM

Datasheet and decoder on www.decentlab.com/support
