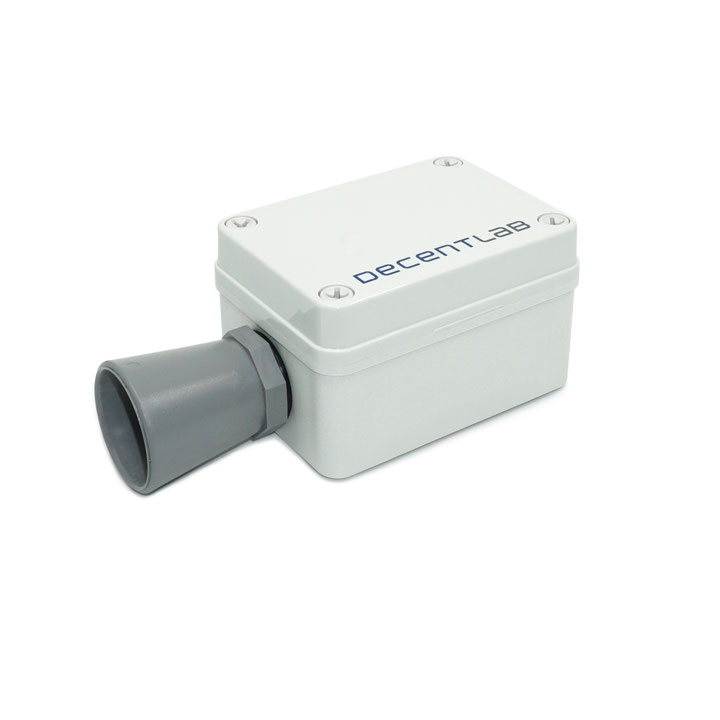

DL-MBX

Ultrasonic Distance / Level Sensor for LoRaWAN®

Made by
Decentlab is a certified partner.
Contact this partner →

Description

The device DL-MBX enables remote monitoring of water level, fill level of tanks and silos, fill level of waste containers, presence of objects or snow level. It measures the distance between the sensor head and the target (rangefinder). The measurement principle is based on ultrasonic waves which are transmitted by the sensor and reflected back from nearby objects. Using the time of flight of the sound waves and the speed of sound (temperature compensated), the sensor computes the traveling distance and thus the distance to the object.
For each measurement, the device collects 15 distance readings (samples). Of these 15 samples, it discards all invalid samples and computes the most reliable value (median), which is transmitted as “distance” value in mm. In addition, the “number of valid samples” is also transmitted. These values allow to estimate the quality of a measurement.

APPLICATIONS

  • Running water level
  • Flood monitoring
  • Waste water management
  • Snow level
  • Silo, waste and tank level
# End Device
# EU 863-870
# Industrial IoT
# Logistics

Specifications

DISTANCE / LEVEL
Based on ultrasonic time of flight measurements
Range:
DL-MBX-001: 0.5 … 10 m
DL-MBX-002: 0.3 … 5 m
DL-MBX-003: 0.5 … 5 m (snow level)
Resolution: 1 mm
Accuracy: 1% or better (factory calibrated)

Technical details

  • LoRaWAN™ class A
  • 2 C alkaline batteries
  • 17 cm x 8.1 cm x 7 cm
  • Reference DL-MBX

Datasheet and decoder on www.decentlab.com/support
