DL-SHT35-001

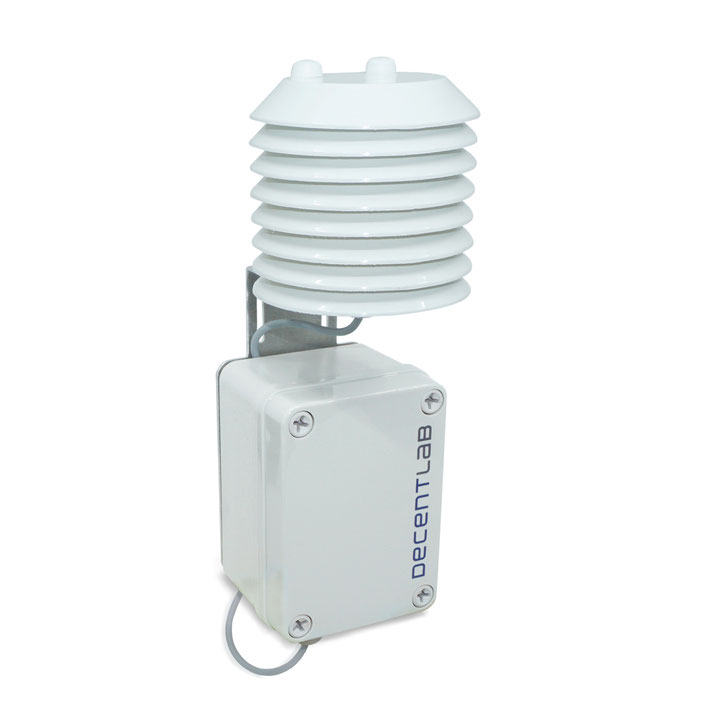

Air Temperature and Humidity Sensor with Radiation Shield for LoRaWAN®

Made by
Decentlab is a certified partner.

Description

Sensor data are transmitted in real-time using LoRaWAN® radio technology. LoRaWAN® enables encrypted radio transmissions over long distances while consuming very little power. The user can obtain sensor data through Decentlab’s data storage and visualization system, or through the user's own infrastructure.

Visit www.decentlab.com for more information about Decentlab's data cloud service.

APPLICATIONS

  • Smart agriculture
  • Urban heat islands
  • Greenhouses
  • Frost alarming
  • Building automation
# End Device
# Environment Monitoring
# EU 863-870
# US 902-928

Specifications

TEMPERATURE

  • Range: -40 ... +125 °C
  • Resolution: 0.01 °C
  • Accuracy: ±0.1 °C from 20 … 60 °C, ±0.2 °C from -40 … 90 °C

RELATIVE HUMIDITY

  • Range: 0 … 100% RH
  • Resolution: 0.01% RH
  • Accuracy: ±1.5% RH from 0 … 80% RH, ±2% RH from 80 … 100% RH

Technical details

  • LoRaWAN™ class A
  • 2 C alkaline batteries
  • 13.5 cm × 8.1 cm × 7 cm (not including sensor and radiation shield)
  • Reference DL-SHT35-001

Datasheet and decoder on www.decentlab.com/support
