DL-SMTP

Soil Moisture and Temperature Profile for LoRaWAN®

Made by
Decentlab is a certified partner.

Description

Sensor data are transmitted in real-time using LoRaWAN® radio technology. LoRaWAN® enables encrypted radio transmissions over long distances while consuming very little power. The user can obtain sensor data through Decentlab’s data storage and visualization system, or through the user's own infrastructure.

Visit www.decentlab.com for more information about Decentlab's data cloud service.

APPLICATIONS

  • Irrigation control
  • Smart agriculture
  • Greenhouse and soiless plantations
  • Parks
  • Golf courses
# End Device
# EU 863-870
# Outdoor
# US 902-928

Specifications

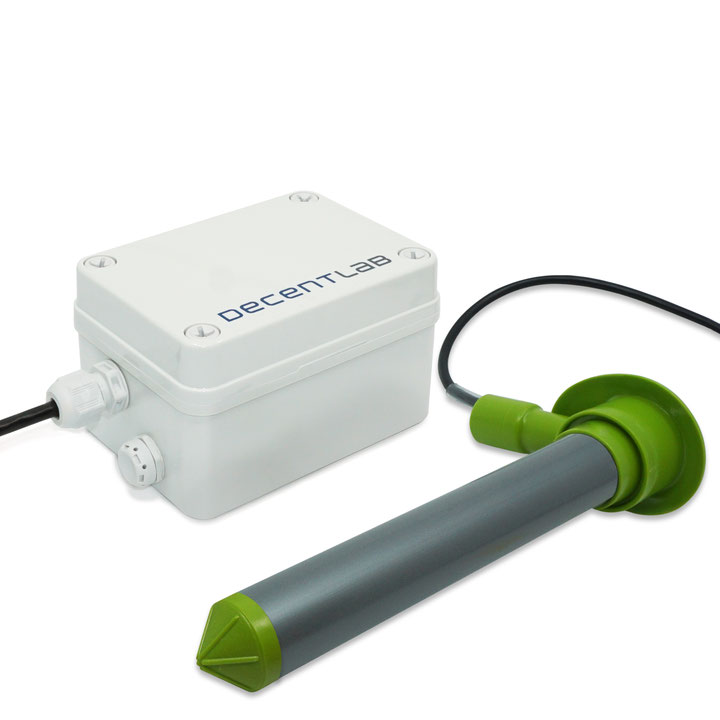

Sub-surface 600 mm profile with 6x capacitance-based soil moisture and soil temperature sensors

MOISTURE / SCALED FREQUENCY UNIT

  • Range: 0 (air) … 100% (water)
  • Resolution: 0.01
  • Accuracy: ±1% at calibration

TEMPERATURE

  • Range: -20 ... +50 °C
  • Resolution: 0.1 °C
  • Accuracy: ±0.2 °C, 0.1% per °C

Custom profile configuration and length on request

Technical details

  • LoRaWAN™ class A
  • 2 C alkaline batteries
  • 13.5 cm × 8.1 cm × 7 cm (not including sensor / cable)
  • 5 m cable
  • Reference DL-SMTP

Datasheet and decoder on www.decentlab.com/support
