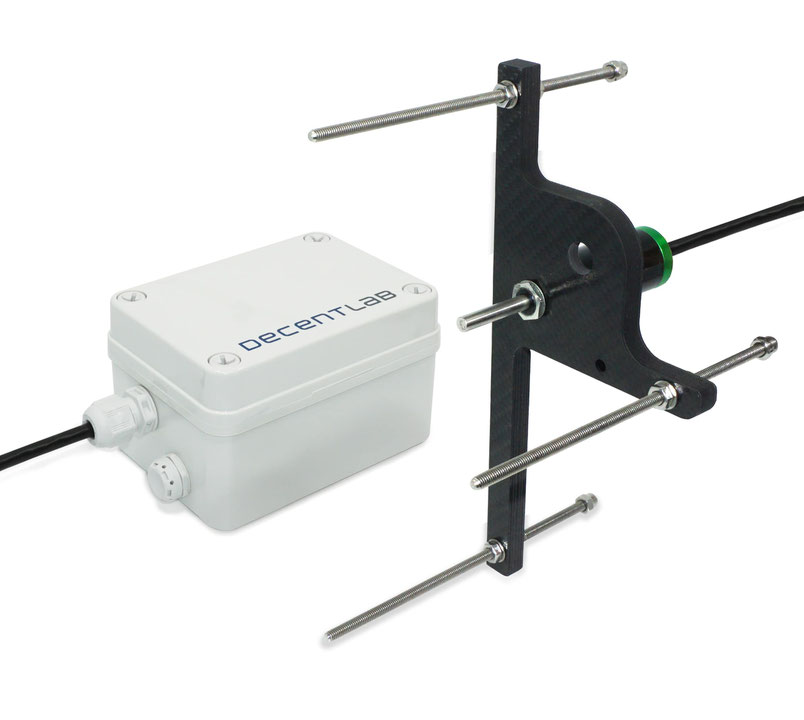

DL-ZN12T, DL-ZN12O, DL-ZN12D

Dendrometer for LoRaWAN®

Made by
Decentlab is a certified partner.
Contact this partner →

Description

Sensor data are transmitted in real-time using LoRaWAN® radio technology. LoRaWAN® enables encrypted radio transmissions over long distances while consuming very little power. The user can obtain sensor data through Decentlab’s data storage and visualization system, or through the user's own infrastructure.

Visit www.decentlab.com for more information about Decentlab's data cloud service.

APPLICATIONS

  • Irrigation control
  • Smart agriculture
  • Forestry
  • Plantation
  • Ecophysiology
# End Device
# EU 863-870
# Outdoor
# US 902-928

Specifications

DENDROMETER / LINEAR POSITION

  • Range: 0 ... 20’000 μm
  • Resolution: < 0.05 μm

Technical details

  • LoRaWAN™ class A
  • 2 C alkaline batteries
  • 13.5 cm × 8.1 cm × 7 cm (not including sensor and radiation shield)
  • 1 m cable

Reference
- DL-ZN12T T Shape Dendrometer
- DL-ZN12O O Shape Dendrometer
- DL-ZN12D Dual Dendrometer

Datasheet and decoder on www.decentlab.com/support
