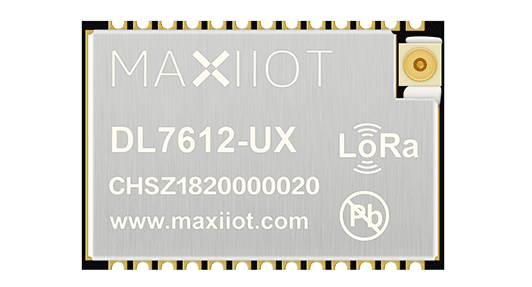

DL7612 LoRa Module

SX1276 + Apollo 1 MCU

Made by
Maxiiot is a certified partner.

Description

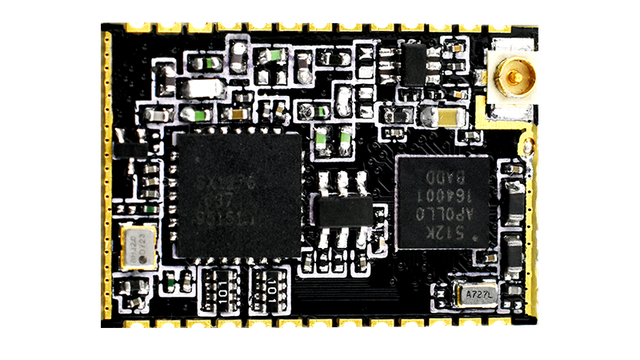

DL7612 is a low power, LoRaWAN based wireless communication module designed for quick integration of sensors to LPWAN. It integrates with Semtech SX1276 RF transceiver and AmbiQ Micro Apollo 1 MCU. The evaluation board supports secondary development, designed with multiple easy to use interface (I2C/SPI/UART/GPIO). The high sensitivity -139dBm combined with the integrated +18.6dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness.

# EU 863-870
# Modules
# US 902-928

Specifications

  • LoRaWAN technique
  • Frequency:ISM band, 863~928MHz Optional.
  • Hig sensitivity: down to -139dBm
  • +18.6dBm constant RF output
  • 25mW RF transimission, 7 level adjustable
  • Effective communication range : 3~5KM
  • Ultral low power consumption, a single battery pack can work 3-5 years
  • Small size designed for quick integration of end nodes to LoRaWAN
  • Dimensions:22.0x15.0x2.7mm (W L H)
  • RoHS compliant
  • CE/FCC
