EAGLE 1500(80)

Smart Meter The Compact and Performant Meter

Made by
IHM Pacific is a certified partner.

Description

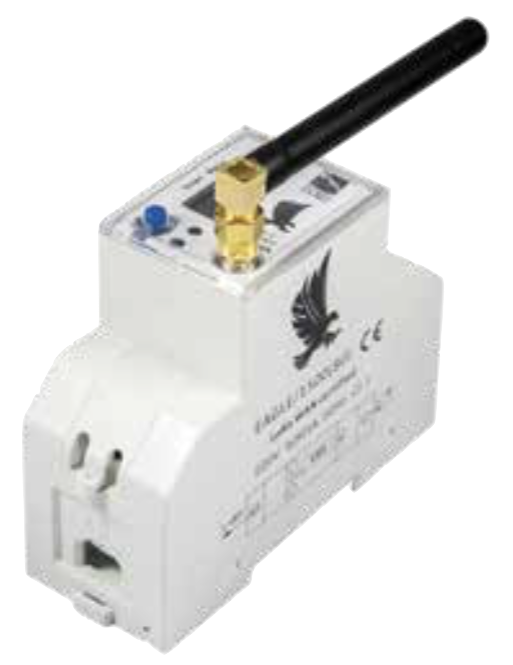

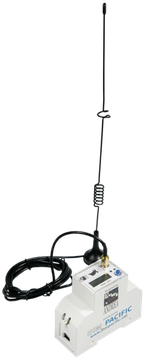

EAGLE/1500(80) is a single-phase din rail smart meter with LoRaWAN communication. EAGLE has a built-in magnetic 80A latching relay and a SMA socket for external antenna.
EAGLE reads remotely the energies, has import and export energy and has also a remote disconnector. These are only some of the main features of this compact and performant smart meter.

# End Device
# EU 863-870

Specifications

Specifications

Technical details

Ref. voltage 220V

Ref. current. 5(80)

Impulse constant 1600imp/kWh

LCD display LCD 5+1

Operation Temp. -20°C to 70°C

Relative humidity < 95%

Ref. frequency 50Hz

Accuracy class Class 1 (MID certified)

Starting current 0,4%/lb (Cl. 1)

Load control Built-in 80A magnetic latching relay

Power consumption < 2W, <10VA

Standard compliant IEC62052-11/IEC62053-21, IEC62055-41/IEC62056-21

LoRaWan communication Certified (868MHz)

Read More
EAGLE 1500(80)'s Distributors
IHM Pacific
