ERS Sound

Room sensor for measuring indoor environment

Made by
ELSYS is a certified partner.
Contact this partner →

Description

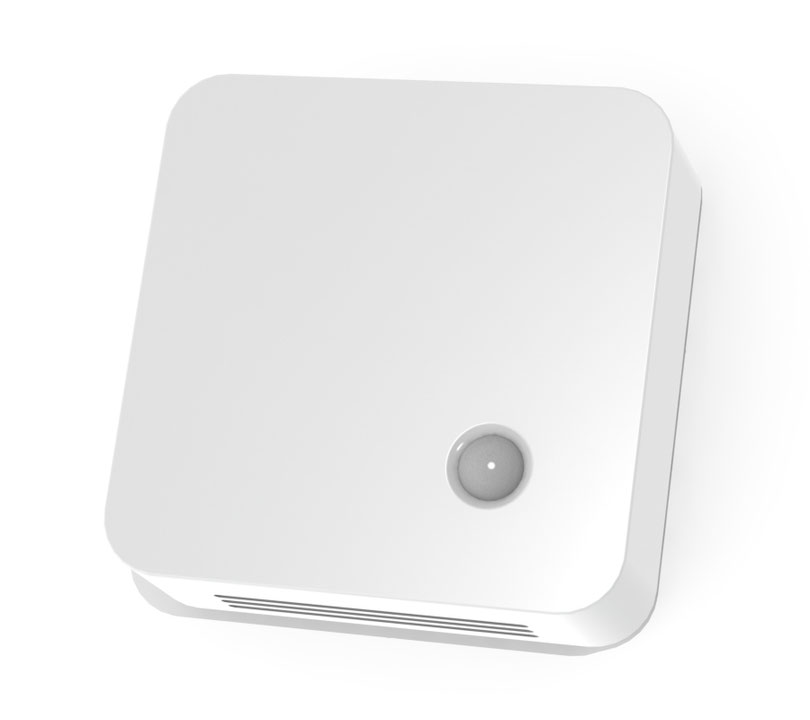

ERS Sound is a LoRaWAN™ room sensor that measures indoor environment. ERS sound is enclosed in a room sensor box and is designed to be wall mounted. Inside the ERS you will find five internal sensors: Temperature sensor, humidity sensor, light sensor, Sound level sensor (peak and average) and a motion sensor (PIR). ERS sound is powered by two 3,6V AA lithium battery(ER14505). The Battery life is estimated to be 3 years but depends on sample interval, transmit interval, data rate and environmental factors.

You are welcome to use our online battery lifetime calculator. All Elsys sensors are equipped with NFC (Near Field Communication) for easy configuration with an Android phone. With our application “Sensor Settings“, you can change sample rate, data rate, encryption keys, triggers, activation and much more. All our sensors are built on the LoRaWAN™ stack from Semtech. Channel plans for US902-928, EU863-870, AS923, AU915-928, KR920-923.

# AS 923
# AU 915-928
# End Device
# Environment Monitoring
# EU 863-870
# Indoor
# LoRaWAN Certified
# Smart Building
# US 902-928

Specifications

Sensors

  • Temperature
  • Humidity
  • Light
  • Sound level
  • Motion (PIR)

Dimensions: 86 x 86 x 27 mm

Technical details

Ask for support
ERS Sound's Distributors
Concept 13

We identify, source, configure and optionally provision your entire LoRaWAN deployment.

ELSYS

elsys.se
