Fennec

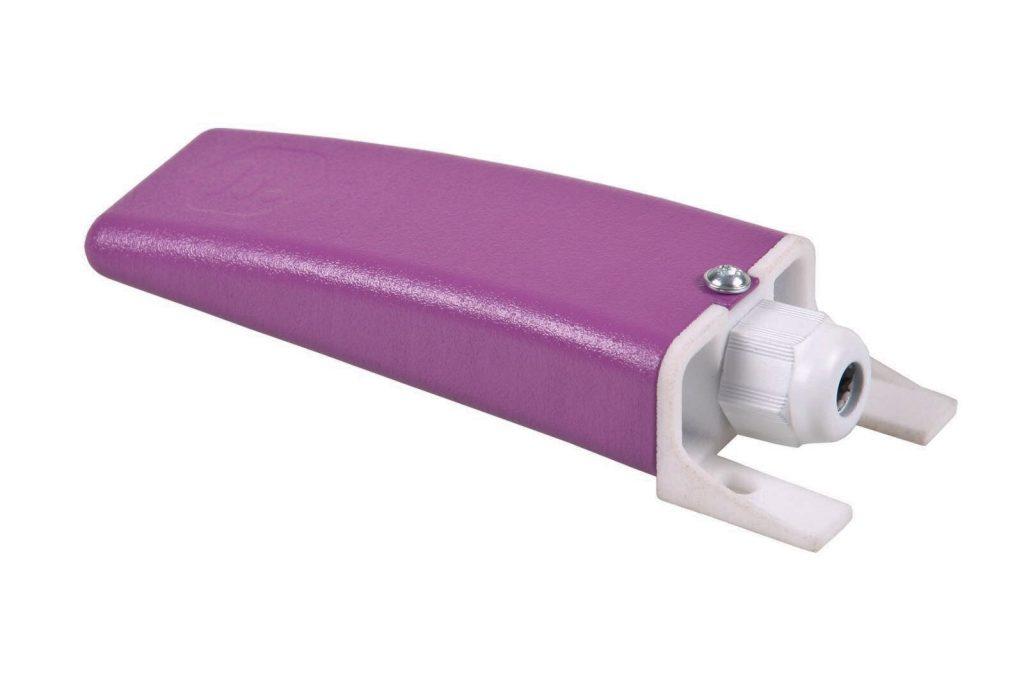

The Fennec is FactoryLab’s most inexpensive and compact data logger. It has been designed specifically for simple applications that require the read-out of only a few sensors. The configuration options are minimal, making the Fennec extremely easy to use. With its compact design in the practical plastic or aluminium housing, this data logger is suitable for a wide range of applications. The built-in battery lasts years and is easy to replace.

The Fennec communicates through LoRa and is equipped with 2 digital inputs, an accelerometer, a 0-10 V and a 4-20 mA connection. The Fennec is also available with GPS.

General

• Processor: 32-Bit ARM cortex M0 (Atmel SAM-L)
• LoRa Radio: SX1272
• GPS: Optional on-board
• On-board internal antenna
• Dimensions: 36 x 23 x 109 mm

Environment

• Temperature: -25 to +70 °C.
• Humidity: 5 – 95%
• Housing: Plastic
• Ingress Protection: IP65

Communication

• LoRaWan: 868 / 915 MHz

Power

• Internal: Non-rechargeable 3.0V (lifespan of up to 5 years)
• Optional 5V external power supply

Connections

• Digital inputs: 2x
• Analog inputs: 1x 4-20mA + 1x 0-10V
• Thermistor: 1x
