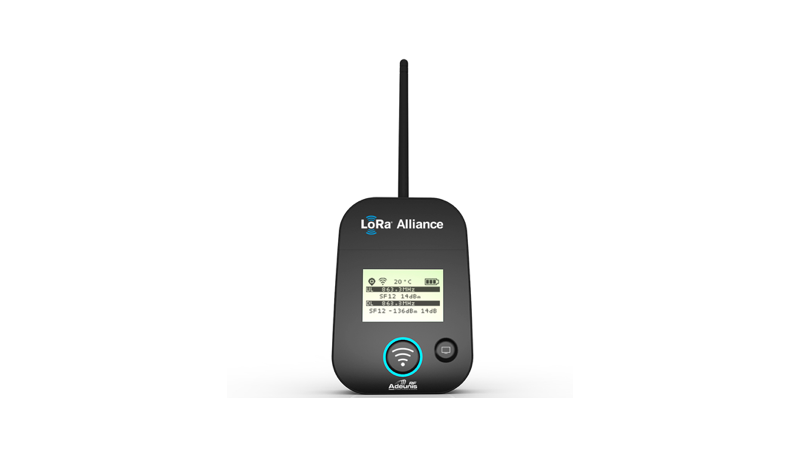

Field test device LoRaWAN

Network coverage & tracking

Made by
Adeunis is a certified partner.

Description

  • Immediate viewing of network coverage data
  • Geolocation of measurement points
  • Dedicated Web application
  • Reference product highly praised by public network operators
# 868MHz
# 915MHz
# End Device
# Localization
# LoRaWAN Certified

Specifications

  • Ready-to-use device
  • Range up to 15 km
  • LoRaWAN V1.0 network protocol
  • Class A & C
  • High precision GPS
  • Self-powered and rechargeable
  • Dedicated web app.
Range
up to 15 km
Power
25mW
Radiated RF power
14dBm
Sensitivity
-140dBm
Frequencies
863-870MHz
Modulation
LoRaTM
Dimensions
180 x 72 x 21mm
Weight
150g
Operating temperature
-20°C /+75°C
Certified
EN300-220 V2012
Data displayed
UL / DL – Channels – RSSI/SNR/PER – GPS – Temperature
Power supply
Self-powered and rechargeable
Dimensions
180 x 72 x 21 mm
Operating temperature range
-20 ° C to +75 ° C
Standards
Directive 2014/53/EU (RED)
Radiated RF power
14 dBm
Sensitivity
-140dBm LoRaWAN™

Technical Details

Hardware
+ High precision GPS
+ Micro USB : batt charging & configuration
+ Button : frame transmission

Firmware
+ LoRaWAN v1 network protocol

Consumption & needs
+ Battery : 2000mAh
+ Autonomy : approx. 10 hours
