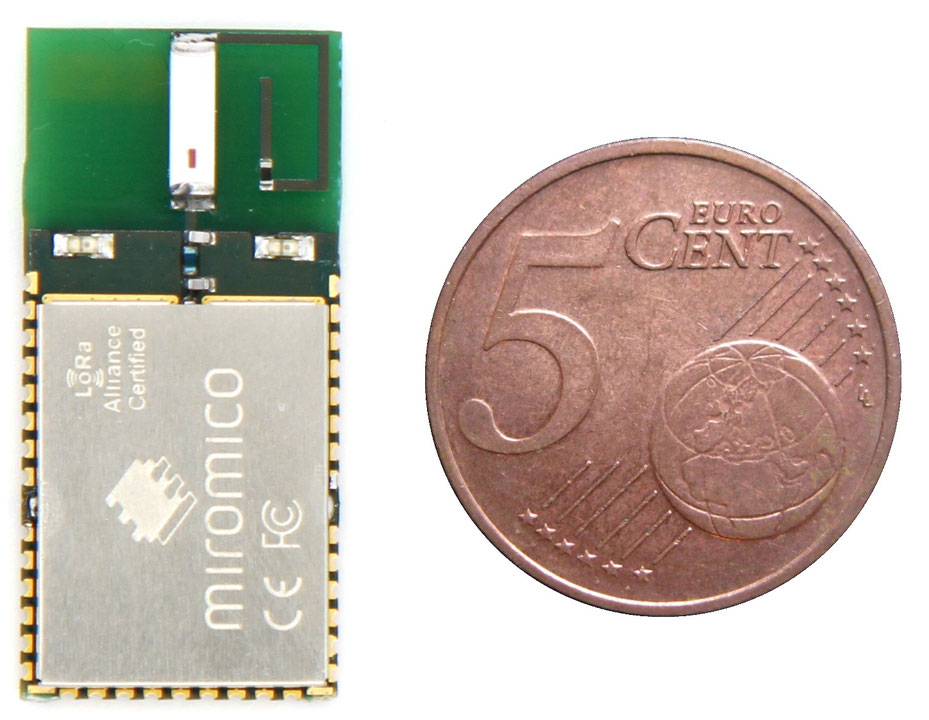

FMLR

High Performance LoRaWAN™-RF-Modules and Sensors

Made by
Miromico is a certified partner.
Contact this partner →

Description

LoRa™ RF modules allow wireless connection of almost all devices, systems and sensors over a distance of up to 100km. No compromises have been taken to optimize power consumption to run the modules from small batteries, such as coin cells, for several years, while the integrated wake on radio (WoR) feature allows the system to be connectable. The optionally integrated ARM Cortex-M3 32-bit micro­controller runs the entire RF stack and has plenty of resources available for additional applications. On-board sensors for temperature, humidity and barometric pressure (optional) enable to build out-of-the-box IoT sensor networks. SPI only variants are available to be used in conjunction with external host controllers running proprietary RF stacks.

# Developement Kit
# EU 863-870
# LoRaWAN Certified
# Modules
# US 902-928

Specifications

  • LoRa Alliance™ LoRaWAN™ certified
  • Up to -143 dBm sensitivity (LNA Option)
  • Up to 20 dBm output power
  • 175+ dB Link budget in typical IoT applications using sector antennas
  • LNA option (up to 6 dB improved sensitivity)
  • Supports (G)FSK, (G)MSK, ASK, OOK, Wireless MBus, IEEE802.15.4g
  • Emulation of Nordic NRF905 and NRF9E5 with 4 times the range, fully backward compatible
  • Plenty of resources available for the integration of custom applications
  • Easily solderable side plated contacts
  • Separation of digital and RF parts greatly reduces RF interference
  • Wake On Radio (WoR) functionality for exceptional low power consumption
  • 868 and 915 MHz ISM band (configurable in software)
  • antenna options: integrated chip antenna/pad/U.FL
  • Integrated low power 32bit-ARM Cortex M3 micro controller available
  • Interfaces: RS232, SPI, I2C, GPIO and analog input
  • Options: LNA, shielding, sensors, proprietary stacks
  • Sensor options: temperature (integrated), humidity/pressure (optional)
  • Development kit available
  • Certified for Europe (CE/ETSI/RED) and USA (FCC, pending)
