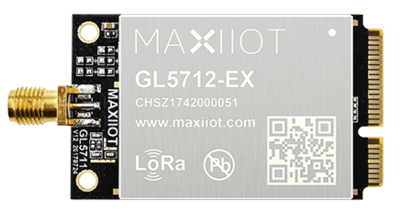

GL5712 LoRaWAN concentrator Module

868MHZ / 915MHZ Concentrator Gateway

Made by
Maxiiot is a certified partner.
Contact this partner →

Description

GL5712 is a LoRaWAN concentrator card in mPCIe form factor based on Semtech’s SX1301 chipset and 2 SX1257 RF end-front . This mPCIe smart concentrator module can be used in any embedded platform offering a free mPCIe slot with USB/SPI connectivity and capable of providing enough power for the module, enable low-power wide area communication capabilities to your new gateway design or existing industrial routers/computers. Typically support Linux and widows etc systems .

# Developement Kit
# EU 863-870
# Modules
# US 902-928

Specifications

Multichannel
Eight(8) programmable Lora parallel demodulation channels.
SPI Interface
The SPI interface gives access to the configuration register of SX1301 via a synchronous full-duplex protocol.
USB2.0 Interface
Build in FT232H chip convert SPI interface of SX1301 to USB2.0
Compact
Mini PCI express form factor TYP. 50.8x30.3x4.7mm (WxLxH)
Environmentally friendly
RoHS compliant
Compliance
US Version (GL5712-U): Certified to FCC Modular Transmitter Standards
EU Version (GL5712-E): Certified to CE Modular Transmitter Standards
