GW-01 RPI

LoRaWAN Gateway Raspberry SX1301

Made by
Yandex is a certified partner.
Contact this partner →

Description

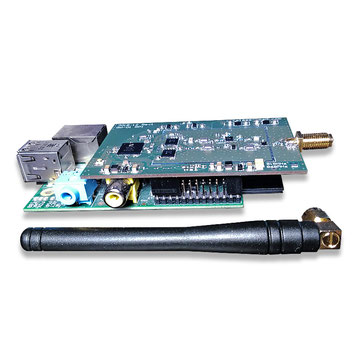

LoRaWAN shield that upgrades your Raspberry Pi board to fully functional Lorawan gateway.

# Developement Kit
# EU 863-870
# Gateways
# Indoor

Specifications

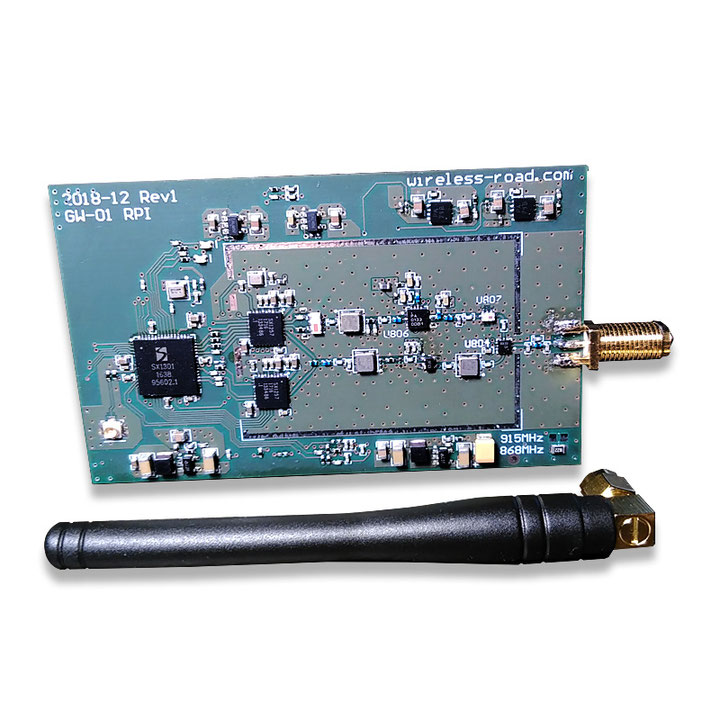

LoRaWAN shield for Raspberry V2.

Includes:
- LoRaWAN shield;
- RF antenna;

Note:
Raspberry Pi not included;

Technical details

  • Temperature range from 0°C to 70°C;
  • Power supply 5 VDC from Raspberry;
  • Sensitivity: -139 dBm;
  • Frequency 868 MHz;
  • External antenna;
  • Shield dimensions 80х50 mm without antenna;
  • Oofficial Semtech's software implementing LoRaWAN protocol;
  • IC SX1301 (8 channel LoRa concentrator);
  • Range up to 2.5 км among the buildings, and up to 10 kilometers on open space;
  • Software.all required software can be installed on your Raspberry in 10 minutes;
  • ОS Linux;access via SSH;
  • Official LoRaWAN libraries lora_gateway and packet-forwarder;
  • Open source;
