Hummbox rain gauge

#agriculture #environment #smartcity

Made by
greencityzen is a certified partner.

Description

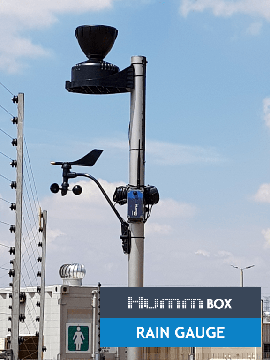

HummBox Rain Gauge is a connected and self powered rain gauge.

# Agriculture
# End Device
# Environment Monitoring
# EU 863-870
# Outdoor
# Smart City
# US 902-928

Specifications

Key benefits :

  • Save water
  • Avoid water stress
  • Increase productivity up to 100%
  • Reduce up to 46% of unusefull round trips, to check soil humidity
  • Manage more green space
  • Reduce cost

HummBox Rain Gauge is a connected and self powered rain gauge

Technical details

Connected rain gauge :
- Precision : 0,2 mm
- Resolution : 0,1 m
- Double offset bucket

Connectivity :
- LPWAN: Sigfox or Lora
- External antenna

User interaction :
Button for on-site configuration and instant measurement
Audio feedback for interactions

Box and mounting:
- Waterproof box and sensor IP65
- Easy mounting with screws or clamp
- Size: 115 x 65 x 55 mm
- Weight: 200g

Autonomy and measurement frequency :
Measurement frequency can be managed over the cloud from once a day to 144 times per day (every 10 minutes)

Battery AA

5 years for 2 measures per day
2 years for 12 measures per day

Battery C (option)

12 years for 2 measures per day
7 years for 12 measures per day

Smart frequency mode increases battery life time adapting the frequency to the dynamic of the physical paramater monitored.

For example, in standard case, the autonomy can be increased from 2 years to 4.5 years.

Options
Second connector can be used for Temperature and humidity sensor
Battery C for autonomy extension
Coupled with temperature & humidity sensors + HummBox Anemometer for a full Weather station

More Info
