HybridTAG

L-500

Made by
Conbee is a certified partner.

Description

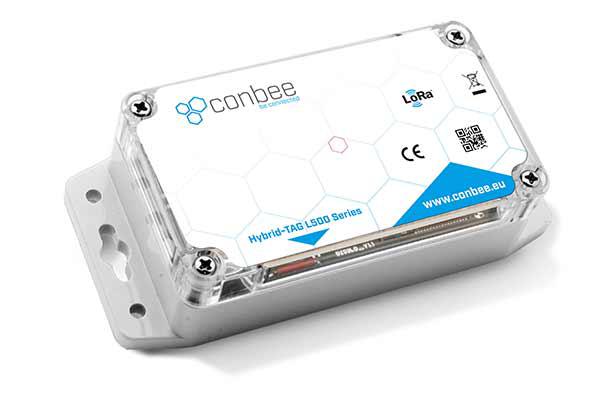

The L500 by conbee is a Smart LoRaWAN™ / Bluetooth Low Energy (BLE) hybrid unit with integrated GNSS/GPS. Ideal to optimize (intra-) logistic processes in the field of container- and asset management, warehouse and inventory scenarios, indoor and outdoor tracking, theft protection and much more. The L500 is robust, tamper-proof and equipped with 3D acceleration and motion sensors. In a definable interval, the L500 automatically reports its identification number, temperature, movement and acceleration data as well as the battery status and position. Each TAG is remotely configurable and reusable after appropriate authentication. The conbee TAG is quickly integrated in existing applications and ready to use.

# 868MHz
# End Device
# Localization
# LoRaWAN Certified

Specifications

Wireless Standards

  • BLE 4.2
  • LoRaWAN

Sensors

  • Temperature
  • Humidity (optional)
  • Accelerometer
  • Light
  • Magnetic Field

Features

  • Reed-Switch
  • LED
  • Memory (optional)
  • GNSS/GBS
  • Buzzer (optional)

Mechanical

  • Size: 100x65x35 mm
  • IP 54 Protection
  • IP 65 Protection

Power Supply

  • 3x AA replaceable battery

Technical Details

Infosheet
