Leveltrack

LPWAN/3G datalogger

Made by
I-Real is a certified partner.

Description

The Leveltrack datalogger is an energy efficient and easily deployable telemetric logger which uses 3G or LPWAN (LoRa/Sigfox) communication technology to transmit measurement data (multiple times a day) to a portal, such as H2gO. Through the application of LPWAN communication technology the battery life of the data logger can be expanded to last for a multitude of years. The logger is extremely useful for absolute and relative level measurements as the housing of the logger contains an external air pressure compensation valve and an integrated baro sensor. Through configurable attachment possibilities the logger is highly suitable for a wide variety of sensors and their application areas.

# 868MHz
# End Device
# Environment Monitoring

Specifications

Area conditions
LT1-LP-R (LORA)
Temperature
-20 till 60ºC
Humidity
20 till 99%
Housing
IP67
Pressure valve
Yes
Air pressure sensor
Yes
Battery
D-cel Li/on
Replacable
Yes
Voltage
3,6V
Battery life
3 to 5 years

Technical Details

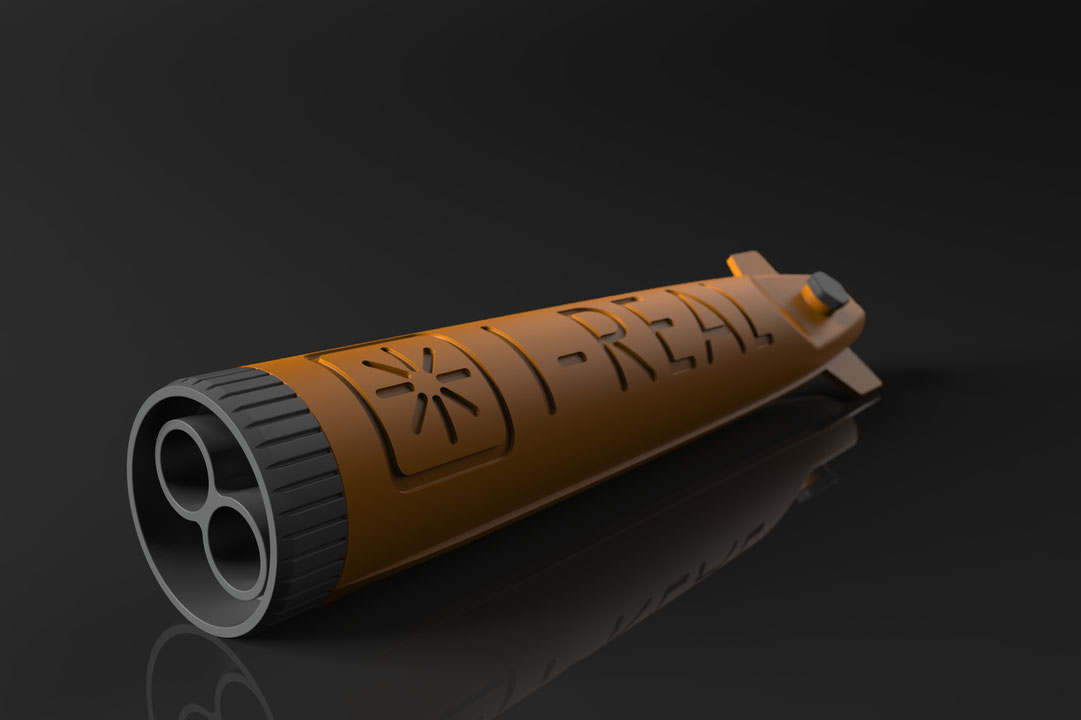

The housing of the Leveltrack has a cylindrical form making it a perfect fit for gauges/bore holes. The inlet of the logger allows for a variety of sensors to be attached, functioning on 4-20 mA, 0-10 V. or pulse. The 3G edition also supports energy efficient sensor editions, with corresponding protocols. Parameters can, depending on the communication method, be set remotely and independently. The 3G edition supports the function of loading new software for the logger remotely.

Specifications Ask for support
