Kerlink LoRa IoT Station

Communication is everything

Made by
Kerlink is a certified partner.

Description

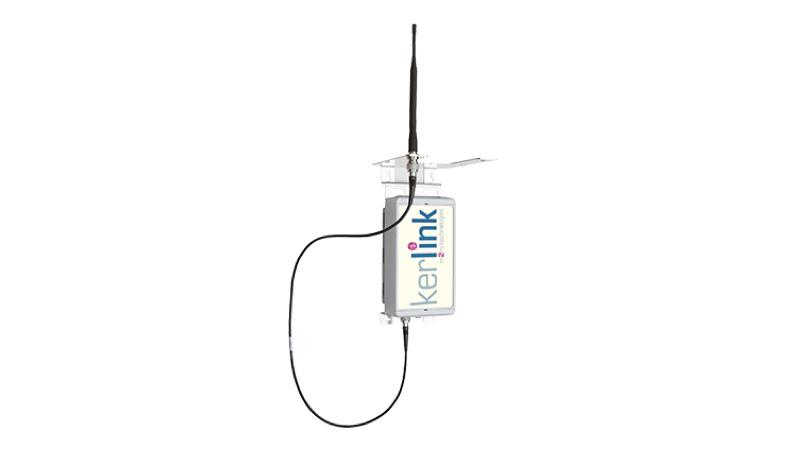

The Kerlink LoRa IoT station is a terminal designed to meet M2M & IoT connectivity service providers that want to operate their network by themselves.

The Station incorporates the Long Range « LoRa » ™ technology developed by Semtech and communication functions (Ethernet and 3G). Thanks to a rugged case - IP 67 -, Wirnet 868 MHz can handle with harsh installation environments (moisture, dust, wind).

Installed on the relay antenna of a telecommunications operator, on the roof of a building or a water tower, it can establish bidirectional communications with several thousand items of intelligent equipment (sensors, meters, connected things) which are several kilometres away.

# EU 863-870
# Gateways
# LoRaWAN Certified
# Outdoor
# US 902-928

Specifications

Operating System
- Standard Long Term Support Linux version 3.10
- File system YAFFS2 (NAND) and EXT4 (eMMC)
- Support of all GNU/Linux tools (cross-compiled for ARM)
- POSIX1 file system
- TCP/IP BSD4.4 socket on network bearer

Software packages included (non-exhaustive)
- PYTHON
- SQLITE

Optional
- JAVA ORACLE OJEC VM (J2M2 compliant
based on CDC 1.1.2 profile)

Networking:
- DHCP client and server
- FTP server
- SSH server
- NFS client
- Firewalling (iptables) and IP routing (layer 3)
- HTTP server
- TFTP server
- L2TP tunneling

Frequency
EU868, US915, AS923
Dimension
315 x 170 x 215 (including mounting kit)
Weight
~2 kg (including mounting kit)
Connectivity
Ethernet, 3G, WiFi

Technical details

The Kerlink LoRa IoT Station is is an industrial solution suitable for people who want to mount the gateway outside and who have sufficient technical skills to connect, mount and maintain the device themselves.

For more information check out the guide and datasheet from the links below.

Datasheet Connect to The Things Network
