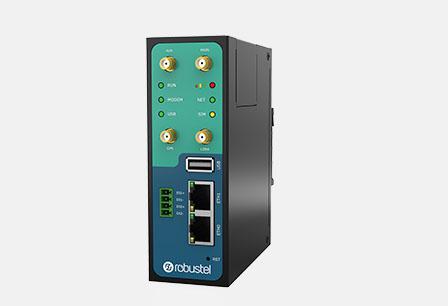

LORA Gateway 868Mhz with Cellular Backup

R3000 LG allows access to various types of LoRa application nodes

Made by
Robustel is a certified partner.
Contact this partner →

Description

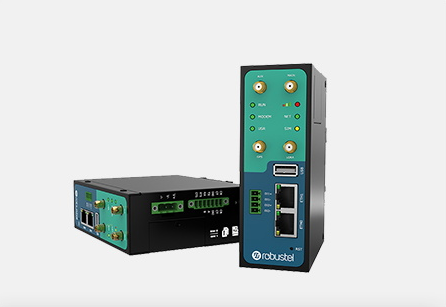

Robustel R3000 LG is an industrial-grade LoRaWAN gateway, integrated with LoRaWAN wireless communication technology and cellular network technology, to provide users with wireless long-distance data transmission services.

Key Features

  • Supporting global LoRaWAN frequency bands
  • Compatible with LoRaWAN and private protocols
  • Compatible with any LoRaWAN cloud server
  • Up to 8 channels supporting receive data simultaneously
  • Supporting Packet Forwarder Version 2.2.1 and Packet Forwarder Protocol Version 1
  • RobustOS + SDK
  • TPH6700 Housing optional
# AS 923
# AU 915-928
# CN 470-510
# EU 863-870
# Gateways
# IN 865-870
# Smart Building
# US 902-928

Specifications

LoRa Interface

Number of antennas: 1

Connector
SMA female with 50 ohms impedance

Standards
433-434 MHz (Europe)
863-870 MHz (Europe)
470-510 MHz (China)
915-927 MHz (Australia)
902-928 MHz (North America)
920-928 MHz (Japan)

Transmitted power
+24.5 dBm

Sensitivity
-142 dBm

Reception capacity
Supporting 8 channels, and each channel can receive data simultaneously

Supporting 1 MHz bandwidth demodulation

Communication range
15 km

Cellular Interface

Number of antennas: 2 (MAIN + AUX)

Connector
SMA female

SIM
2 (3 V & 1.8 V)

Standards
2G/3G/4G

Ethernet Interface

Number of ports
2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN

Magnet isolation protection
1.5 KV

GPS/GLONASS Interface (Optional)

Number of antennas: 1

Connector

SMA female with 50 ohms impedance

Acquisition sensitivity

GPS: greater than -148 dBm

GLONASS: greater than -145 dBm

Horizontal position accuracy

GPS: 2.5 m
GLONASS: 2.6 m
Protocol
NMEA-0183 v4.10

Serial Interface

Number of ports
1 x RS-232 or 1 x RS-485
Connector
7-pin 3.5 mm female socket with lock
Baud rate
300 bps to 230400 bps
Parametric form
8E1, 8O1, 8N1, 8N2, 7E2, 7O2, 7N2, 7E1
RS-232
TxD, RxD, RTS, CTS, GND
RS-485
Data+ (A), Data- (B)

Digital Input

Number of ports
2 x DI (dry contact)
Connector
4-pin 3.5 mm female socket
Isolation
3KVDC or 2KVrms
Absolute maximum VDC
“V+” +5V DC (DI)
Absolute maximum ADC
300 mA

Others
Reset button
1 x RST
SD
1 x Micro SD interface
Expansion
1 x USB 2.0 host up to 480 Mbps
CLI
1 x CLI interface
LED indicators
1 x RUN, 1 x MODEM, 1 x USR, 1 x RSSI, 1 x NET,
1 x SIM
Built-in
RTC, Watchdog, Timer

Software (Basic features of RobustOS)

LoRaWAN protocols
V1.0 Class A/Class C and V1.0.2 Class A/Class C
Network protocols
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
VPN tunnel
IPsec, OpenVPN, GRE
Firewall
DMZ, anti-DoS, Filtering (IP/Domain name/
MAC address), Port Mapping, Access Control
Management
Web, CLI, SMS
Serial port
Transparent, TCP Client/Server, UDP,
Modbus RTU Gateway

App Center (Available Apps for RobustOS)
Apps
L2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS, SNMP, Language, RobustLink
Request on demand. For more Apps please visit www.robustel.com.

Power Supply and Consumption

Connector
3-pin 5 mm female socket with lock
Input voltage
9 to 60V DC
Power consumption
Idle: 100 mA@12 V
Data link: 400 mA (peak) @12 V

Physical Characteristics

Ingress protection
IP30
Housing & Weight
Metal, 570 g
Dimensions
125 x 104 x 43.5 mm
Installations
Desktop, wall mounting and 35 mm DIN rail mounting

Certifications
WEEE, RoHS

Technical details

https://www.robustel.com/product/r3000-lg-industrial-lorawan-gateway/
