LoRa Temperature and Humidity Sensor

Temperature, humidity, sensor, LoRa

Made by
LANSITEC Information Technology Co., Ltd. is a certified partner.

Description

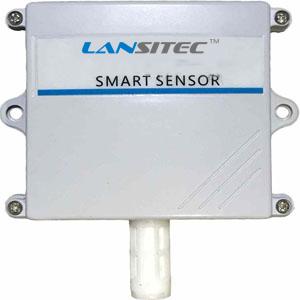

Lansitec temperature and humidity sensor is based on the advanced LoRa modulation and powered by a non-chargeable lithium battery with 5-year operation time. It is a cost effective LoRaWAN end device for a variety of applications. It’s IP65 enclosure and long operation time offers low maintenance and is ideal for outdoor use. Sensor work mode and transmit interval can be adjusted via the LoRa network.
Lansitec sensors family is fully compatible and plug & play for LoRaWAN network operation.

Applications:
- Weather station
- Heating
- Drying
- Ventilation & air conditioning systems
- Smart Agriculture
- Building automation

# AS 923
# AU 915-928
# CN 470-510
# End Device
# EU 863-870
# IN 865-870
# Logistics
# US 902-928

Specifications

  • LoRaWAN 1.1
  • Sensor: PT100 platinum RTD
  • Maximum 4 probes are supported.
  • External antenna
  • On/Off button

Technical details

  • LoRaWan1.1
  • Sensitivity: -142.5dBm @ SF12 300bps
  • 19000mAh non-chargeable Li battery
  • Standby time: 5 years @25℃ 17dBm transmit power and 5 minutes report interval
  • Accuracy: <±1℃
  • Operation temperature: -40~+70℃
  • Operating temperature: 5%~95%
  • Dimension: 7646110mm
