LoRaWAN Pressure Sensor

Pressure, Level, EU868, IN865, AS923, AU915, US915, KR920

Made by
Daviteq is a certified partner.
Contact this partner →

Description

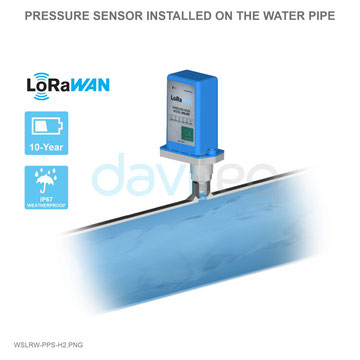

WSLRW-PPS is the LoRaWAN Integrated Process Pressure Sensor, and it has different kinds of measurements, such as Gage/Absolute/Sealed Gage, range -1 .. + 700 bar, high accuracy, and stability. With Ultra-low-power design and smart firmware allow the sensor can last up to 10 years with 2 x AA batteries (depends on configuration). The sensor will transmit data in the kilo-meters distance to LoRaWAN gateway, any brand on the market.

Highlighted Features:

  • LoRaWAN communication standard to allow sensor connect to any LoRaWAN Gateway on the market;
  • Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 10 years with a 2 x AA type battery;
  • Advanced PIEZO technology to deliver high accuracy and stable measurement;
  • IP67 rating for both indoor and outdoor applications.
# AS 923
# AU 915-928
# End Device
# Industrial IoT
# Logistics
# US 902-928

Specifications

  • Sensor: Advanced PIEZO technology
  • Measurement range: Select from -1 .. + 700 bar Gage/Absolute/Sealed Gage
  • Over pressure protection 1.5 x Span
  • Accuracy: 0.5% of span
  • Stability: < 0.3% span/year
  • Wetted parts: 304SS/316SS
  • Measuring Fluids: Any fluid which is workable with materials 304SS/316SS
  • Working temperature: -10 .. + 80 oC
  • Process connection: Standard G1/4 or Others (consult factory)

Technical details

  • Data rate: 250bps .. 5470bps
  • Antenna: Internal Antenna 2.67 dbi
  • Battery: 02 x AA size 1.5VDC, battery not included
  • RF Frequency and Power: 860..930Mhz, +14 .. +20 dBm, configurable
  • Protocol: LoRaWAN, class A
  • Data sending modes: Interval time and when alarm occurred
  • RF Module complies to: ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan)
  • Working temperature: -40oC..+60oC (using Energizer Lithium Ultimate AA battery)

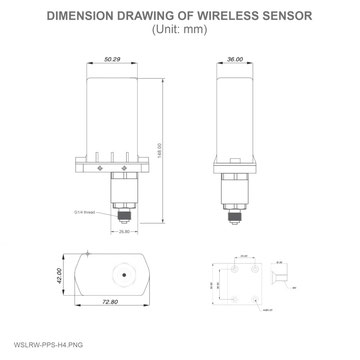

  • Dimensions: H180xW50xD40
  • Net-weight: 250 grams
  • Housing: Polycarbonate & POM plastic, IP67
