LoRaWAN Pulse Sampling

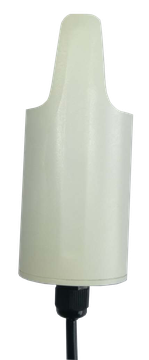

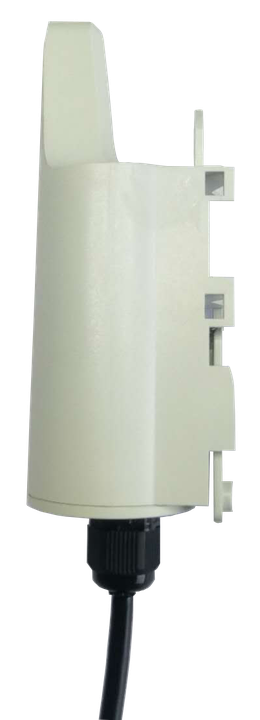

PULSE868-LRW Passive single pulse data acquisition

Made by
Friendcom is a certified partner.

Description

  • Passive single pulse data acquisition
  • Supports three-day (today, yesterday, and the day before yesterday) data reporting
  • Supports pulse constant user customization
  • Supports AT command or host computer software configuration
  • Supports threshold alarm settings
# CN 470-510
# End Device
# EU 863-870
# Indoor
# Industrial IoT
# Smart Metering

Specifications

  • Frequency - 868 MHz
  • Transmission Power (Max.) - 20dBm
  • Receiving Sensitivity (Max.) <-139dBm@SF12, BW125kHz
  • Transmission Current (Typ.) - 120mA@20dBm
  • Receiving Current (Typ.) - 16 mA@BW125kHz
  • Quiescent Current -≤ 8 uA
  • Operating Voltage - 2.6~3.7 V
  • Operating Temperature - -40°C ~ +85°C
  • Configuration Method- TTL communication interface AT command configuration
