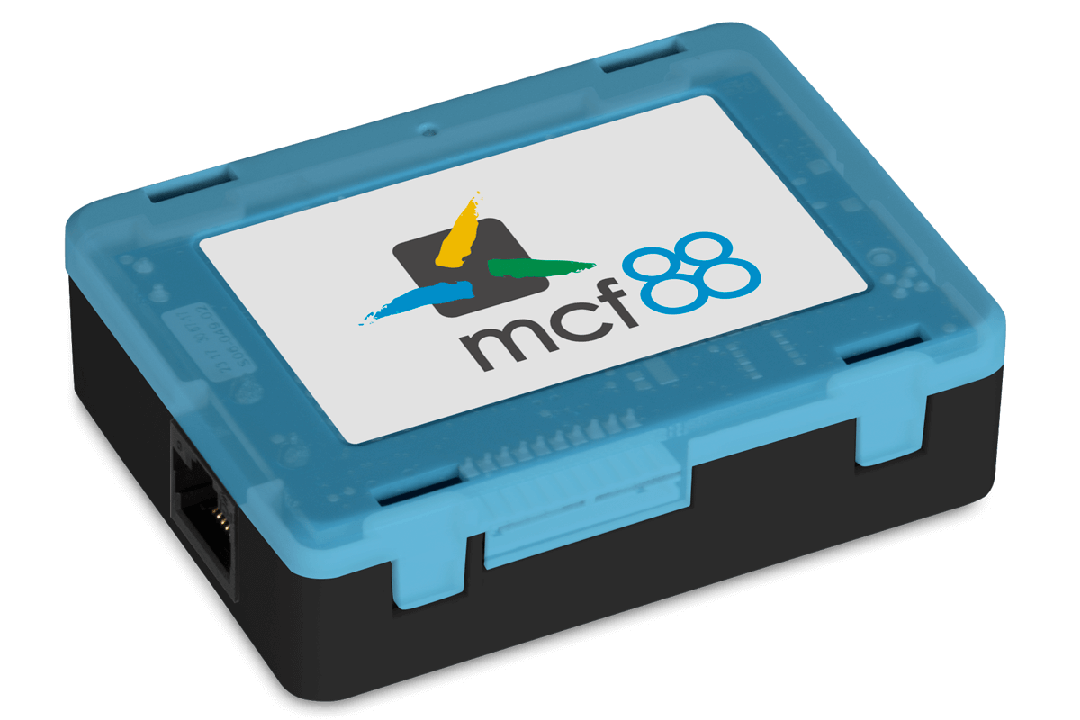

MCF-LW06485

RS485 to LoRaWAN™ interface

Made by
mcf88 is a certified partner.

Description

This interface can be interfaced to any Modbus device to read and write any register of the connected device through the LoRaWAN™ platform. Configuration is simply made using a configuration file uploaded to the interface.

# EU 863-870
# Industrial IoT
# LoRaWAN Certified
# US 902-928

Specifications

Applications
Remote industrial interface
Remote process supervisor
* Datalogger

Technical details

  • CPU Cortex M4
  • RTC
  • EEProm 32KB
  • Flash 1MB
  • Encryption AES 128 bit
  • LiPo rechargeable battery
  • Class C LoRaWAN™ stack @868MHz
  • Modbus RS485
  • USB On The Go
  • IoT node setup ad firmware upgrade via USB interface
  • Power supply 10-36Vdc
  • Storage temperature range -20 + 80 °C
  • Working temperature range -10 + 70 °C
  • Dimensions L x H X P: 81 x 60 x 24mm
Datasheet Ask for support
