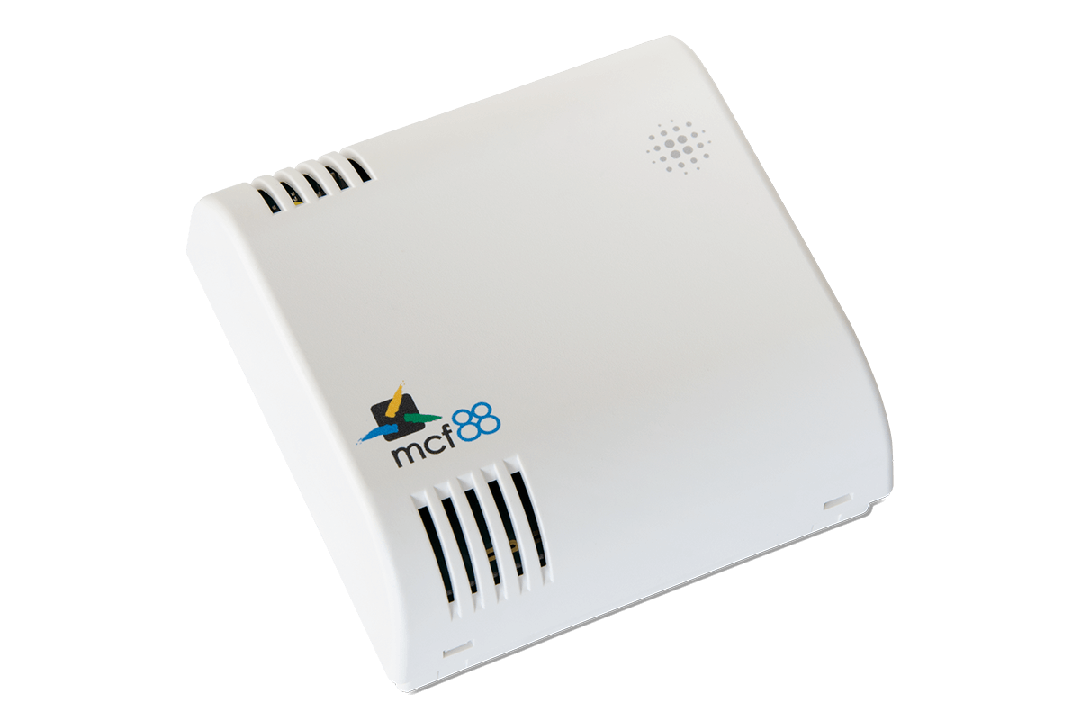

MCF-LW12TER

LoRaWAN™ indoor environmental sensor

Made by
mcf88 is a certified partner.

Description

This device reads temperature, humidity and pressure and sends collected data over the LoRaWAN™ network. Ideally suited for a wide range of applications such as building automation, condition monitoring, predictive maintenance, security, healthcare and many more use cases.

# End Device
# Environment Monitoring
# EU 863-870
# Indoor
# Smart Building
# US 902-928

Specifications

Applications
Home Building automation
 Energy saving
* Enviromental quality control

Technical details

  • CPU Cortex M0+
  • EEProm 32Kb
  • Flash 64k
  • Encryption AES 128 bit
  • Class A Lorawan™ stack @868Mhz @920Mhz (SIN, HKG…)
  • Temperature -10….. 60 °C ( ±0.5°C)
  • Humidity 0%….. 100% ( 20% ….80% ±3% @25°C, 0%-20%-80%-100%@ 25°C ±5%)
  • Pressure 300….1100hPa (±1hPa)
  • Battery powered with 5 years of life (according radio propagation effectiveness and 10 min reading period)
  • NFC for IoT node setup, FW upgrade and data reading
  • Installation indoor
  • Storage temperature range -20 + 80C°
  • Working temperature range -10 + 60C
  • Dimensions: 80x80x25mm
  • Weight ~145g
Datasheet Ask for support
