MCF-LW12TERWP

LoRaWAN™ outdoor environmental sensor

Made by
mcf88 is a certified partner.
Contact this partner →

Description

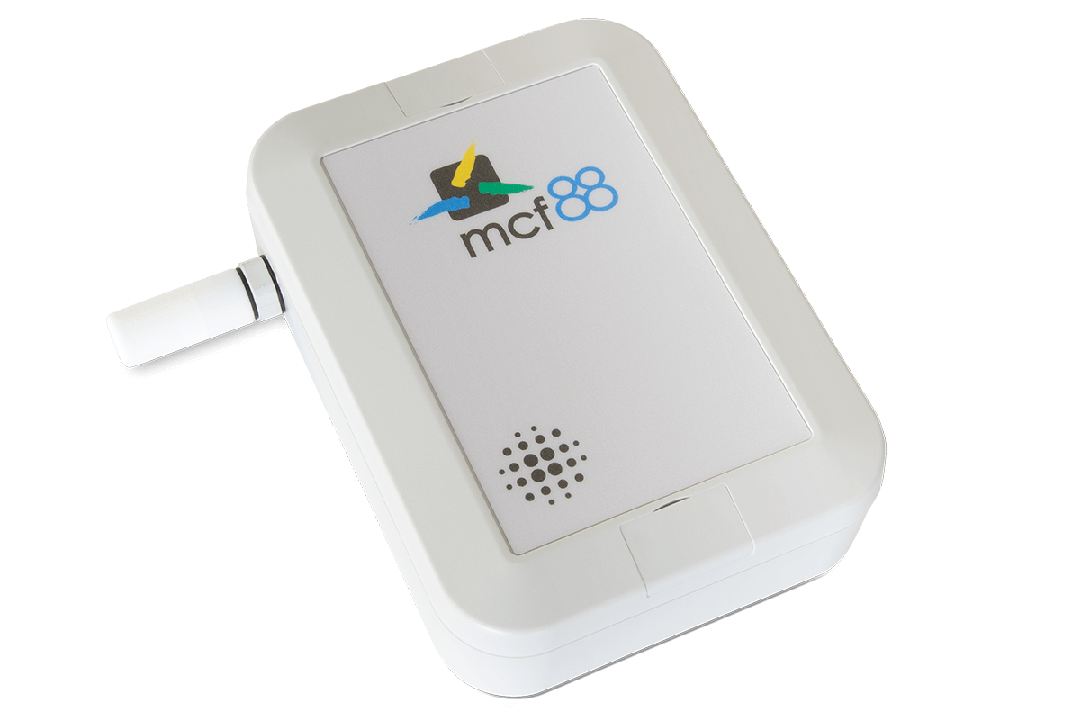

This IP67 battery powered sensor reads temperature, humidity and pressure and sends collected data over the LoRaWAN™ network. Ideally suited for a wide range of applications such as weather stations, urban monitoring, air quality, industrial, environmental or farming projects.

# Agriculture
# End Device
# Environment Monitoring
# EU 863-870
# LoRaWAN Certified
# Outdoor
# Smart City
# US 902-928

Specifications

Applications
Weather Station
 Smart city
* Smart agriculture

Technical details

  • CPU Cortex M0+
  • EEProm 32Kb
  • Flash 64k
  • Encryption AES 128 bit
  • Class A Lorawan™ stack @868Mhz @920Mhz (SIN, HKG…)
  • Temperature -10….. 70 °C ( ±5°C)
  • Humidity 0%….. 100% ( 20% ….80%±3% @25°C, 0%-20%-80%-100%@ 25°C ±5%)
  • Pressure 300….1100hPa (±1hPa)
  • Battery powered with 5 years of life (according radio propagation effectiveness and 10 min reading period)
  • Wall or pole mounting
  • Storage temperature range -20 + 80C°
  • Working temperature range -20 + 70C
  • NFC for IoT node setup, FW upgrade and data reading
  • Dimensions: 150x150x40mm
  • Protection class IP67
Data sheet Ask for support
