MeshNET Light Controller

Better, Safer, Faster, Smarter

Made by
The Arcs Group is a certified partner.

Description

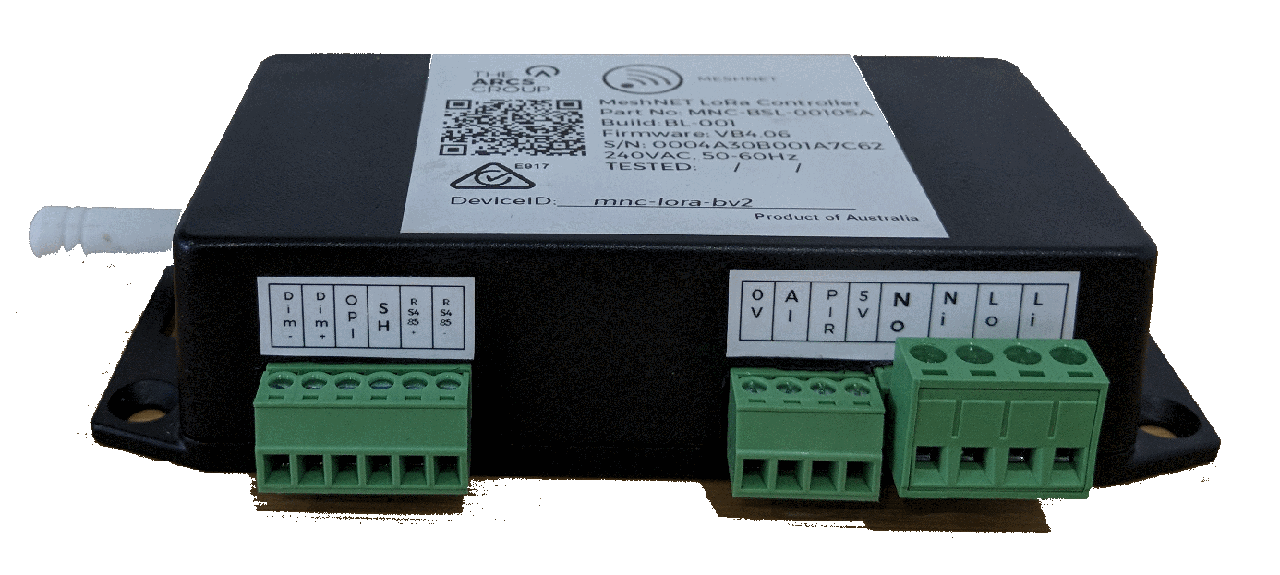

The MeshNET Light Controller is a LoRaWAN Class A sensor designed to monitor and control LED, HPS, LPS type external lighting fixtures. The device is low powered, uses wireless communications and comes in either a NEMA version (external fitting) or box version (internal fitting).

# AS 923
# AU 915-928
# End Device
# Indoor
# Industrial IoT
# Outdoor
# Smart Building
# US 902-928

Specifications

The MeshNET Light Controller measures the incoming current & AC voltages, power use, power factor & temperature. It also provides an accumulated KWhr meter of energy usage. Control of lighting fixtures is an important feature of the device. Lights can be powered on/off as well as dimmed (LED light only). Light control can be achieved autonomously (photo sensor), or via group/system control. When used in conjunction with MeshNET Vision the data obtained can then be processed into meaningful and useful information that provides organisations with a valuable resource.

Technical details

  • Electrical Measurements: Power, Voltage, Current, KWhr
  • Data Message Interval: Configurable
  • Dimming: 0-10V
  • Power Source: 240Vac 50Hz or Battery
  • Enclosure: NEMA or Box Version
  • LoRaWAN Freq. Plans supported: AU915 and AS923-925
