Mote II

Long Range Radio

Made by
IMST is a certified partner.

Description

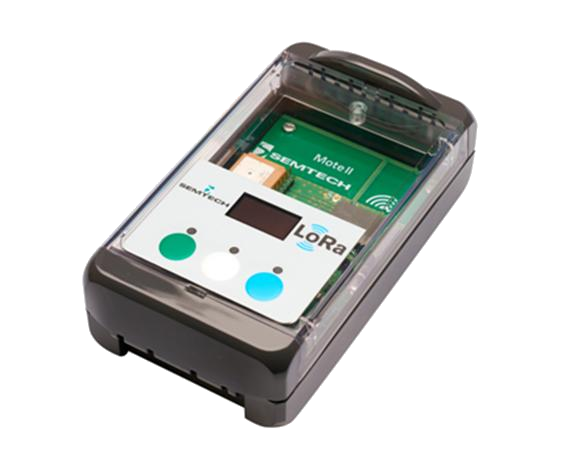

The Mote II is a demonstration platform intended to be used in a variety of applications. It is fitted with the low power, bidirectional radio module iM881A, sensors like accelerometer, altimeter, temperature and a GPS module. iM881A was specially designed for battery driven LoRa® applications. It supports LoRaWAN™ operation modes and offers an excellent RF performance combined with low current consumption.

Mote II passed the Orange device interoperability test. This test validates the performance of the Mote II in the Orange public LoRaWAN™ network environment

# End Device
# Environment Monitoring
# EU 863-870
# LoRaWAN Certified
# Outdoor

Specifications

Frequency range
SRD Band 863 to 870 MHz
Modulation
LoRa™ Spread-Spectrum
RF output power
up to +14 dBm (50Ω pad)
Total isotropic sensitivity (TIS)
123 dBm ( TIS - SF7 - BW125kHz )
120 dBm ( TIS - SF7 - BW250kHz )
130 dBm ( TIS - SF10 - BW125kHz )
136 dBm ( TIS - SF12 - BW125kH )
Interfaces
UART
SPI
I²C
RF (LoRa™)
IO's
Digital IOs
Analog Inputs
Dimension
151 x 80 x 50 mm
Operating temperature
-30°C to +65°C
International protection marking
IP65 housing
Sensors
3D acceleration
Temperature
Pressure
GPS receiver
Certification
LoRaWAN certified product, Conformity according to EC Directive
