MultiConnect mDot

LoRaWAN™ ready module for ISM bands

Made by
Multitech is a certified partner.

Description

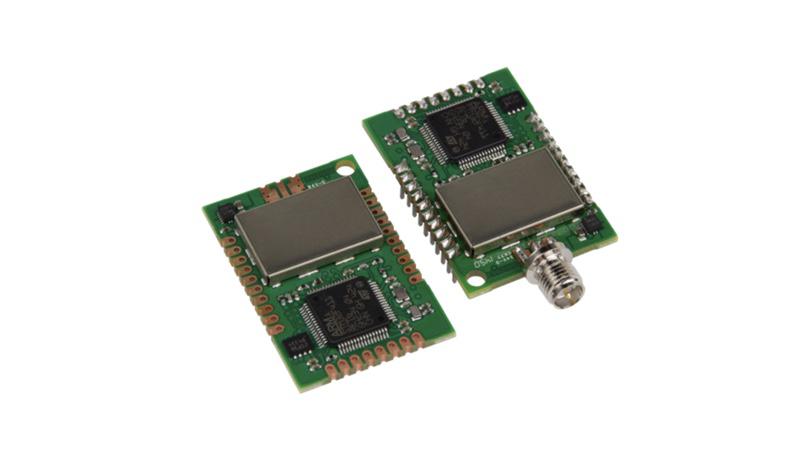

The MultiConnect® mDot™ is a LoRaWAN™ ready, Low-Power Wide Area Network (LPWAN) module for 868 MHz SRD and 915 MHz ISM bands. It is capable of 2-way single-duplex communication across distances of up to 5 miles/8 km line of sight, deep into buildings, or within noisy environments*. It supports ARM® Cortex®-M4 processor, complete with mbed libraries for intelligence and remote device monitoring. By using LoRa™ technology, mDot simplifies deployment and local connectivity for Internet of Things (IoT) applications in North America and Europe.

The mDot is FCC/IC/CE certified.

# EU 863-870
# LoRaWAN Certified
# Modules
# US 902-928

Specifications

The package includes:
+ USB and serial interfaces
+ USB port for mbed development environment
+ RS-232 DB-9 connector for serial interface
+ Arduino shield socket

Frequency
EU868, US915, AS923

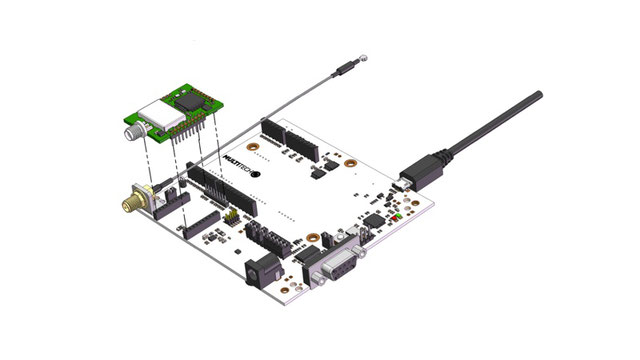

Developer Board
Board 1 - MTUDK 2.0 mDot Developer Board,
Cables
1 - Micro USB Cable
Antennas
1 - 868-915 MHz Antenna, 1 - RSMA-to-U.FL Antenna cable
Quick Start Guide
Yes

Technical details

mDots bring intelligence, reduced complexity and a lower overall bill of material cost to the very edge of the network while supporting a variety of electronic interfaces to connect just about any “Thing” for years on battery power.

Applications
+ Manage and harvest sensor data
+ Control and monitor remote assets and devices
+ Mesh network replacement

Operating Modes
+ LoRaWAN 1.0.1 compliant
+ Developer friendly ARM mbed libraries provides customization capability for specific applications
+ Onboard flash and RAM reduces overall build of material costs

COMING SOON: Video tutorial and docs connecting mDot using LoRaWAN

mDot Quick Start
