MultiConnect xDot

Secure, Long Range RF Modules (MTXDOT Series)

Made by
Multitech is a certified partner.
Contact this partner →

Description

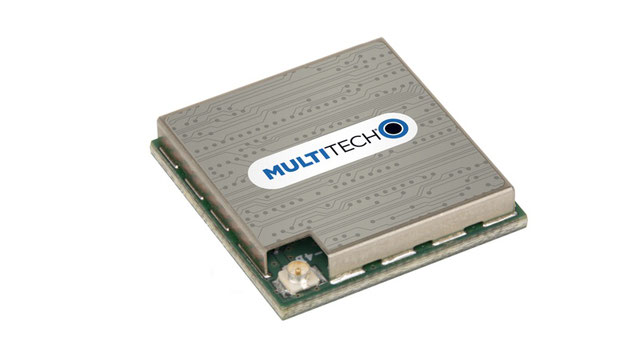

The MultiConnect® xDot™ is a secure ARM® mbed™ programmable, low-power RF module that provides long-range, low bit rate M2M data connectivity. It is LoRaWAN™ 1.01 compliant providing bi-directional data communication up to 10 miles/15 km line-of-sight and 1-3 miles/2 km into buildings*, using sub-GHz ISM bands in North America and Europe.

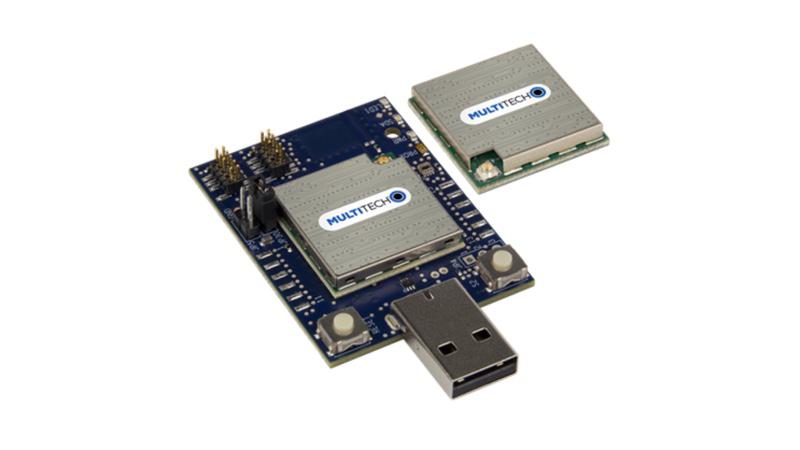

xDots can be purchased as standalone modules for design-in or pre-mounted on the xDot-DK developer board.

# AS 923
# AU 915-928
# End Device
# EU 863-870
# LoRaWAN Certified
# Modules
# US 902-928

Specifications

  • FCC/CE end-certified with ARM® mbed™ libraries for developers
  • LoRa Alliance Certified™
  • Optional Gemalto secure element for AES-128 cryptographic encryption
  • 2-way duplex communication, ideal for emergency or mission-critical applications
  • Multiple I/O interfaces for most any "Thing"
  • LoRaWAN data rates 293bps - 20 Kbps + FSK up to 300Kbps
Frequency
EU868, US915, AS923
Manufacturer Part Number
MTMDK-XDOT-NA1-A00
Description
MULTICONNECT XDOT MICRO DEVELOPE
Lead Free Status / RoHS Status
Lead free / RoHS Compliant

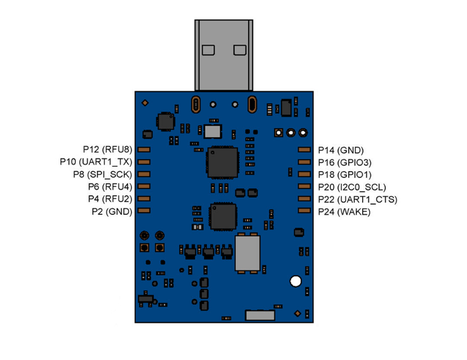

Developer Board
1 - xDot Developer Board with xDot

Technical details

Applications
+ Securely manage and harvest sensor data
+ Control and monitor remote assets and devices
+ Low power for 10+ year battery performance

Operating Modes
+ Developer friendly ARM mbed libraries provides customization capability for specific applications
+ Comprehensive AT command instruction set

xDot Quick Start
MultiConnect xDot's Distributors
Multitech

Communications solutions for the Internet of Things
