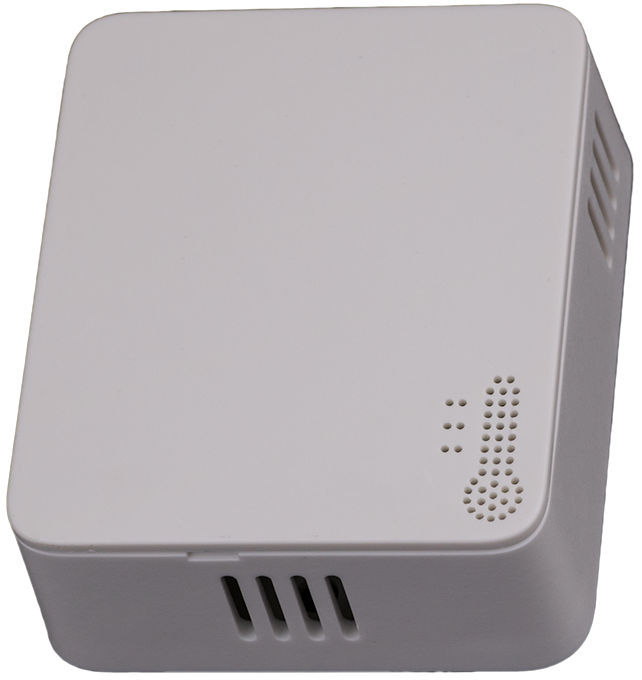

OY1110

LoRaWAN Temperature and Humidity Sensor

Made by
Talkpool is a certified partner.

Description

LoRaWAN sensor that measures temperature and humidity, with an incredible maintenance free lifetime of 10 years at a 5-minute measurement interval. Easy to use, configurable over the air and stylish in design to fit into indoor spaces.

# End Device
# Environment Monitoring
# EU 863-870
# Indoor
# Logistics
# Smart Building

Specifications

Accuracy and range
Temperature accuracy: ± 0,2 °C (conditions 0 °C to +50 °C)
Temperature range: -20 °C to +60 °C
Humidity accuracy: ± 2% (conditions 10-90% RH)
Humidity range: 0% to 100% non-condensing

Accuracy of±0,1 °C and ±1,5% humidity available upon request

Technical details

Connectivity
Network: LoRaWAN
Frequency bands: 868 MHz
Provisioning: Over the air & personalization

Security
Algorithms: AES-128
Hardware: Cryptographic co-processor
Features: Secure boot
Secure: firmware upgrade

Hardware based ultra secure key storage

Battery life

Battery life length: 10 years (at 5 minute intervals, SF7)
Primary cell: Lithium-thionyl 3.6V
Capacity: 3.6 Ah

Size & Weight
Size: 65 x 75 x 28 mm
Weight: 75g

Configuration
Measurement intervals: 1 minute – 1 week
Transmission intervals: 1 minute – 12 weeks
Default 15 minutes, configurable over the air

Unique App EUI available upon request

Enclosure
IP30

Certifications
RoHS compliant
CE
LoRaWAN
