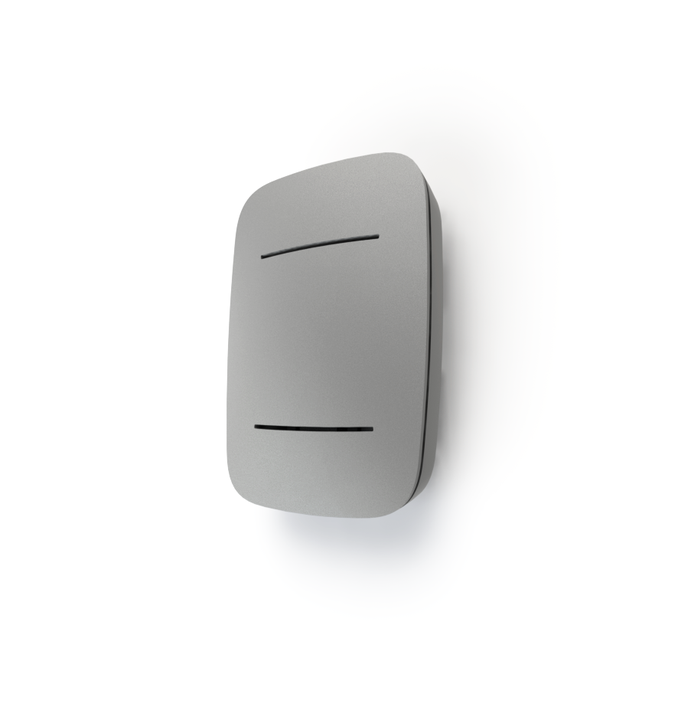

OY1210

LoRaWAN CO2 Meter

Made by
Talkpool is a certified partner.
Contact this partner →

Description

LoRaWAN sensor that measures temperature, humidity and carbon dioxide, with an incredible maintenance free lifetime of 5 years at a 15-minute measurement interval. Easy to use, configurable over the air and stylish in design to fit into indoor spaces.

# End Device
# Environment Monitoring
# EU 863-870
# Indoor
# Smart Building

Specifications

Operating principle
Non-dispersive infrared (NDIR)Yes
Sample method Diffusion

Accuracy and range
Temperature accuracy: ± 0,2 °C (conditions 0 °C to +50 °C)
Temperature range: -20 °C to +60 °C
Humidity accuracy: ± 2% (conditions 10-90% RH)
Humidity range: 0% to 100% non-condensing
Measurement range: CO2 400 – 5000 ppm
Accuracy CO2: ±50ppm ±3% of reading
RMS noise CO2: 0.7ppm @ 400ppm
1.4ppm @2000ppm (filtered)
Accuracy of±0,1 °C and ±1,5% humidity available upon request

Technical details

Connectivity
Network: LoRaWAN
Frequency bands: 868 MHz
Provisioning: Over the air & personalization

Size
Size: 111 x 77 x 26 mm
Weight: 75g

Security
Algorithms: AES-128
Hardware: Cryptographic co-processor
Features: Secure boot
Secure firmware upgrade
Hardware based ultra secure key storage

Battery life
Battery life length: >5 years (at 15 minute intervals, SF7)
Battery type: 2x Lithium-thionyl 3.6V (replaceable)
Capacity: 3.6Ah

Configuration
Measurement intervals: 15 minutes, configurable over the air
Transmission intervals: 15 minutes, configurable over the air
Unique App EUI available upon request

Enclosure
IP30

Certifications
RoHS compliant
CE
LoRaWAN
