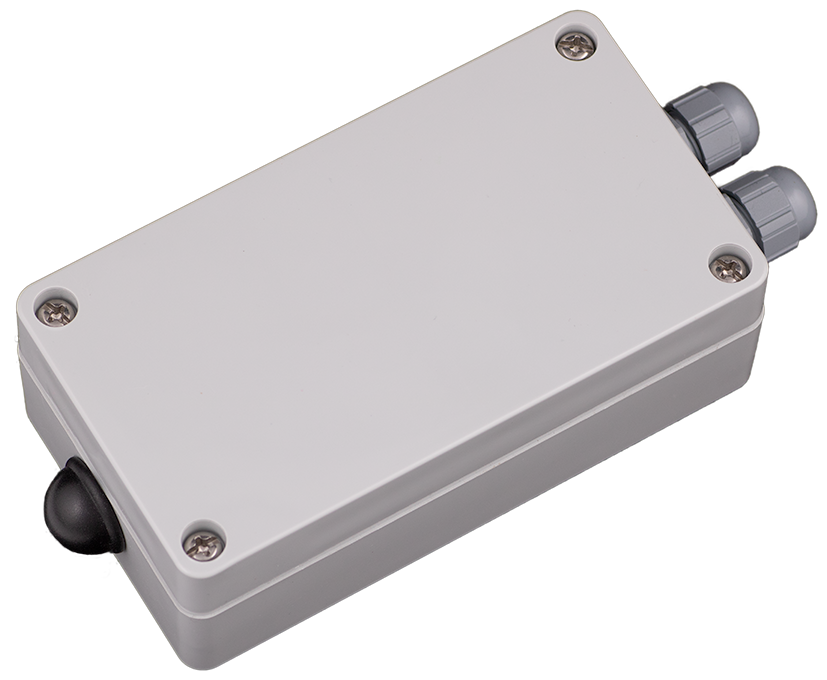

OY1400

LoRaWAN Industrial Communication and Control Unit

Made by
Talkpool is a certified partner.
Contact this partner →

Description

LoRaWAN unit designed to connect external analogue probes to your LoRaWAN network. Fit for industrial environments, built to have many years of maintenance free battery life.

# End Device
# EU 863-870
# Indoor
# Industrial IoT
# Logistics
# Smart Building

Specifications

Sensing probe
Sensing probe type: 4-20 mA, 0-10 V, open/closed circuit
Number of probes: 2 individual channels
Data transmission frequency: Programmable and adaptive

Technical details

Connectivity
Network: LoRaWAN
Frequency bands: 868 MHz
Provisioning: Over the air & personalization

Security
Algorithms: AES-128
Hardware: Cryptographic co-processor
Features: Secure boot
Secure firmware upgrade

Hardware based ultra secure key storage

Battery life
Battery life length: 10 years (dependent on external probes and use case)
Primary cell: Lithium-Manganese 3V
Size & capacity: 2x CR123A 1.7 Ah
Replaceable: Yes

Size & Weight
Size: 120 x 65 x 43 mm
Weight: 180g

Environmental data, quality and reliability
Operating temperature: –20°C to +55°C
Humidity: 0-100%
RoHS compliant: Yes

Enclosure
IP68

Certifications
RoHS compliant
CE
LoRaWAN
