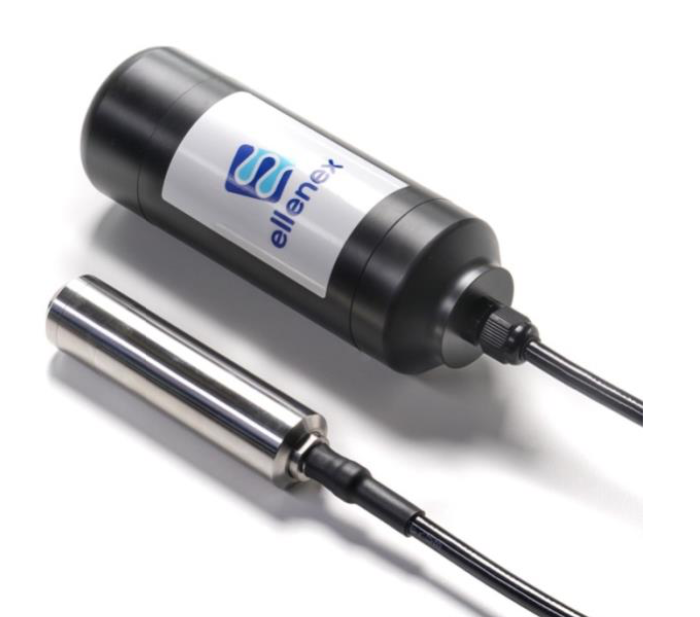

PLG3-L

Low Power Level Transmitter for Liquid Media w/Built-In GPS Tracker

Made by
Ellenex is a certified partner.
Contact this partner →

Description

Suitable for following applications:

  • High Value Remote Pressurised Asset
  • Mobile Hydraulic Systems
  • Truck Overload Monitoring
  • Chiller and Cooling System Monitoring
  • Water Delivery Systems
  • Diesel Delivery Systems
  • Gas and Liquid Delivery Systems • Mobile Air Compressor Monitoring
# AS 923
# AU 915-928
# End Device
# EU 863-870
# Indoor
# Outdoor
# US 902-928

Specifications

Main Features:

  • Compatible with all LoRaWAN® frequencies
  • Wide range of industrial applications
  • High accuracy
  • Designed to meet outdoor applications
  • Long-term durable performance in harsh environment
  • Ultra-low power
  • Suitable for liquids compatible with SS
Sensor
Range:
2, 5, 10 (or other ranges up to 200) m H2O
Accuracy:
0.25 (typ.) %Span
Resolution:
0.01%Span
Pressure Reference:
Vented Gauge
Temperature Coefficient of Zero:
0.03 %FS/°C
Temperature Coefficient of Span:
0.03 %FS/°C
Long Term Stability (1 Year):
0.2 %Span
Overload Protection:
150 %FS
Storage/Operation Temperature:
-20 ~ +85 °C
Compensated Temperature:
0 ~ 60°C
Power
Power Supply:
Built-in Replaceable Lithium Battery, External Power
Rated Voltage:
3.6V
Battery Lifetime:
50,000+ Readings and 10,000+ Transmission (More than 10 years for most applications)
Physical Specification
Materials:
O-ring: Viton, Body: SS304, Diaphragm: SS316, Oil: Silicon, Enclosure: ASA/POM
Process Connection:
No Process Connection (or on request)
Weight:
~1,200g (for 5m range)
Protection Rate:
IP65 and UV protected enclosure and IP68 sensor head
Communication
LoRaWAN Version, Class:
1.0.2revB, Class A (Class C on request)
LoRaWAN Activation Type:
OTA (default), ABP
Sampling Type:
Periodic (default), Event triggered
Sampling Period:
Configurable via downlink (default 4 hours)
Transmission Type:
Per sample (default), Event triggered, Conditional
Parameter Configuration:
Over-the-air via LoRaWAN® downlinks
Locally via wireless connectivity
Firmware Update:
Locally via wireless connectivity, Over The Air

Technical details

PLG3-L - Frequency Zone - Range - (customised options)

Note: Standard product comes with AU 915-928MHz, 5m range and external antenna
