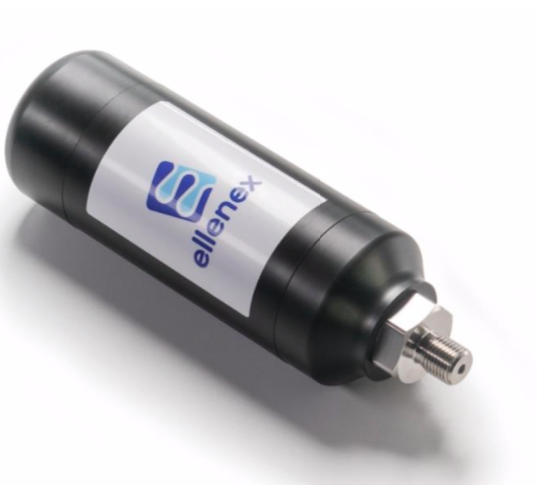

PTC2-L

Low Power Pressure Transmitter for Corrosive Liquid and Gas Media

Made by
Ellenex is a certified partner.

Description

Suitable for following applications:

  • Wastewater Pump Performance Monitoring
  • Corrosive Liquid Storage Level Monitoring
  • Corrosive Liquid Pipeline Pressure Monitoring
  • Spraying System Monitoring
  • Pressurised System Monitoring
  • Compressed Corrosive Gas Monitoring
# AS 923
# AU 915-928
# End Device
# EU 863-870
# Industrial IoT
# Outdoor
# US 902-928

Specifications

Main Features:

  • Compatible with all LoRaWAN® frequencies
  • Wide range of industrial applications
  • High accuracy
  • Designed to meet outdoor applications
  • Long-term durable performance in harsh environment
  • Ultra-low power
  • Suitable for corrosive liquids and gases
Sensor
Range:
Selectable between 0~0.5 to 0~200 bar
Accuracy:
0.5 %Span
Resolution:
0.01 %Span
Pressure Reference:
Vented Gauge, Sealed Gauge, Absolute
Temperature Coefficient of Zero:
0.02 %FS/°C
Temperature Coefficient of Span:
0.02 %FS/°C
Long Term Stability (1 Year):
0.2 %Span
Pressure Overload:
300 (range <1bar); 150 (higher range) %FS
Pressure Cycles (Zero to Full Scale):
10+ Million
Storage/Operation Temperature:
°C
Compensated Temperature:
-10 ~ +70 °C
Power
Power Supply:
Built-in Replaceable Lithium Battery, External Power
Rated Voltage:
3.6V
Battery Lifetime:
50,000+ readings and 10,000+ transmission (More than 10 years for most applications)
Physical Specification
Materials:
Body: Hastelloy or PVDF, Diaphragm: Hastelloy or Ceramic (Al2O3),Enclosure: PVDF/POM, O-ring: FKM/ FFKM
Process Connection:
G1/2 Male (or others on request)
Weight:
550g
Protection Rate:
IP65 /IP67, UV Protected
Communication
LoRaWAN Version, Class:
1.0.2revB, Class A (Class C on request)
LoRaWAN Activation Type:
OTA (default), ABP
Sampling Type:
Periodic (default), Event triggered
Sampling Period:
Configurable via downlink (default 4 hours)
Transmission Type:
Per sample (default), Event triggered, Conditional
Parameter Configuration:
Over-the-air via LoRaWAN® downlinks
Locally via wireless connectivity
Firmware Update:
Locally via wireless connectivity, Over The Air

Technical details

PTC2-L - Frequency Zone - Range - (customised options)

Note: Standard product comes with AU 915-928MHz, 5m range and external antenna
