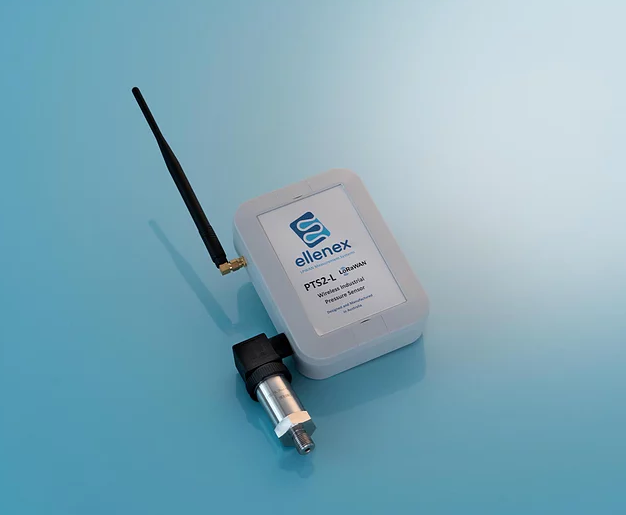

PTS2-L

Low Power Pressure Transmitter

Made by
Ellenex is a certified partner.
Contact this partner →

Description

Suitable for following applications:

  • Pump Performance Monitoring
  • Water Pipeline Pressure Monitoring
  • Pressurised System Monitoring
  • Chiller and Cooling System Monitoring
  • Hydraulic and Pneumatic Systems Monitoring
  • Liquid Storage Level Monitoring
  • Spraying System Monitoring
  • Air Compressor Monitoring
# Agriculture
# End Device
# Industrial IoT
# LoRaWAN Certified
# Outdoor
# US 902-928

Specifications

MAIN FEATURES:
Compatible with all LoRaWAN frequencies
Wide range of industrial applications
High accuracy
Designed to meet outdoor applications
Long-term durable performance in harsh environment
Ultra-low power
* Suitable for liquids and gases compatible with SS316

Sensor
Range:
Selectable between 0~0.5 to 0~1000 bar
Accuracy:
0.25%Span
Resolution:
0.01%Span
Pressure Reference:
Vented Gauge, Sealed Gauge, Absolute
Temperature Coefficient of Zero:
0.02%FS/°C
Temperature Coefficient of Span:
0.02%FS/°C
Long Term Stability (1 Year):
0.2%Span
Pressure Overload:
300 (range <1 bar); 150 (higher range) %FS
Pressure Cycles (Zero to Full Scale):
10+ Million
Compensated Temperature:
-10 ~ +70 °C
Power
Power Supply:
Built-in Replaceable Lithium Battery, external power (option)
Rated Voltage:
3.6V
Battery Lifetime:
100,000+ readings and 20,000+ transmission
Physical Specification
Materials:
O-ring: Viton, Body: SS304, Diaphragm: SS316, Oil: Silicon / Olive, Enclosure: ASA/ POM
Process Connection:
G1/4 Male (or others on request)
Weight:
550g
Protection Rate:
IP65 /IP68, UV protected -
Communication
LoRaWAN Version, Class:
1.0.2revB, Class A (Class C on request)
LoRaWAN Activation Type:
OTA (default), ABP
Sampling Type:
Periodic (default), Event triggered
Sampling Period:
Configurable via downlink (default 4 hours)
Transmission Type:
Per sample (default), Event triggered, Conditional
Parameter Configuration:
Over-the-air via LoRaWAN® downlinks
Locally via wireless connectivity
Firmware Update:
Locally via wireless connectivity, Over The Air

Technical details

ORDERING CODE
PTS2-S - Frequency Zone - Range - Pressure Reference - Process Port - (customised options)

Note: Standard product comes with AU 915-928MHz, vented pressure reference, G1/4 process port and external antenna
