R311G

Wireless Light Sensor

Made by
AllIoT is a certified partner.

Description

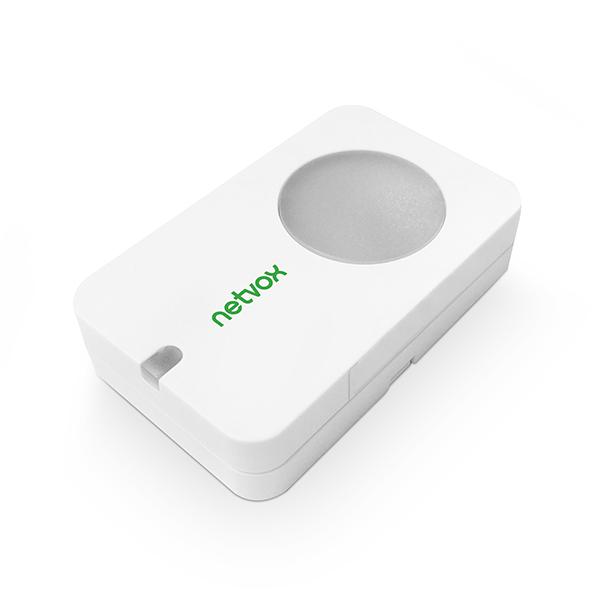

Netvox’s wireless light sensor is used for the detection of ambient light intensity. It can work in conjunction with other devices to perform wireless dimming functions. The wireless communication is sent via LoRaWAN protocol at pre-arranged intervals.

# End Device
# EU 863-870
# Indoor
# Logistics
# Smart Building

Specifications

Features:
- Compatible with LoRaWAN protocol
- 2 x CR2450 3V batteries
- Built-in antenna
- Simple operation and device configuration
- Reports battery voltage and light level

Technical details

Parameters

Electric:
- Input Power - 2 x 3.0V CR2450 button batteries
- Operating Power - DC 2.4V~3V
- Standby Current - 12uA/3.0V
- Transmitting Current (Max) - 120mA/3.0V
- Receiving Current (Max) - 11mA/3.0V
- Brightness Detecting Range - 1~3000LUX
- Low Voltage Threshold - 2.4V
- Voltage Measurement Accuracy - ±0.1V

Physical:
- Main Body Dimensions: 57mm x 35mm x 15mm
- Weight: 32.3g
- Operating Temperature: -20℃ ~ 55℃
- Environment Humidity Range: <90% RH (No condensation)
- Storage Temperature: -40℃ ~ 85℃
