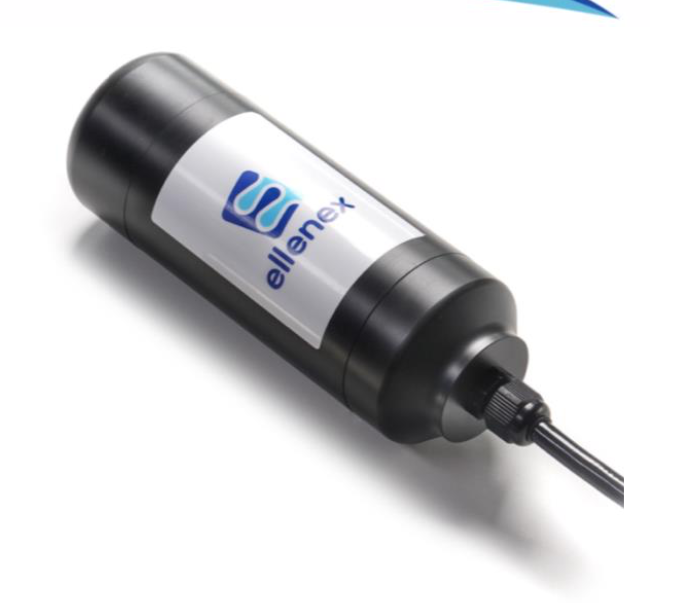

RS1-L

Single Channel LoRaWAN® Operated Low Power Transmission Interface for Industrial Applications

Made by
Ellenex is a certified partner.
Contact this partner →

Description

Suitable for the following applications:

  • Pump Performance Monitoring
  • Water Pipeline Pressure Monitoring
  • Pressurised System Monitoring
  • Chiller and Cooling System Monitoring
  • Hydraulic and Pneumatic Systems Monitoring
  • Liquid Storage Level Monitoring
  • Spraying System Monitoring
  • Air Compressor Monitoring
# AS 923
# AU 915-928
# End Device
# EU 863-870
# Outdoor
# US 902-928

Specifications

Main Features:

  • Compatible with all LoRaWAN® frequencies
  • Wide range of industrial applications
  • Designed to meet outdoor applications
  • Long-term durable performance in harsh environment
  • Ultra-low power
Sensor Interface
Interface Options:
- Analogue: mV / mV/V / 4-20mA/ 0-5V / 0-10V
- Digital: I2C / RS232/ RS485/ Modbus/ HART/SDI12/ TTL UART
- Temperature: Pt100, 2 or 3 wire; Pt1000, 2 or 3 wire
- Pulse: Pulse (Reed Switch)
Electric Connection:
1m cable, pin connection (or other options on request)
Operating Temperature Range:
-10 ~ +70 °C
Power
Power Supply:
Built-in Replaceable Lithium Battery, External Power (option)
Rated Voltage:
3.6V
Battery Lifetime:
Typ. 50,000+ readings and 10,000+ transmission
Physical Specification
Materials:
ASA or POM
Weight:
350g
Protection Rate:
IP65/IP67, UV Protected
Communication
LoRaWAN Version, Class:
1.0.2revB, Class A (Class C on request)
LoRaWAN Activation Type:
OTA (default), ABP
Sampling Type:
Periodic (default), Event triggered
Sampling Period:
Configurable via downlink (default 4 hours)
Transmission Type:
Per sample (default), Event triggered, Conditional
Parameter Configuration:
Over-the-air via LoRaWAN® downlinks
Locally via wireless connectivity
Firmware Update:
Locally via wireless connectivity, Over The Air

Technical details

RS1-L - Frequency Zone - Range - (customised options)

Note: Standard product comes with AU 915-928MHz, 5m range and external antenna
