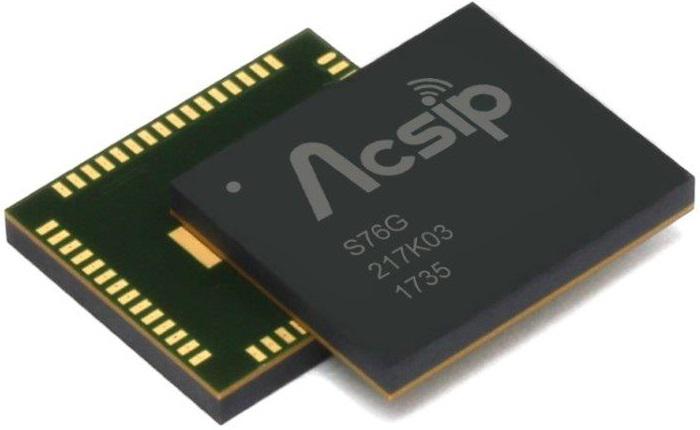

S76G

LoRa and GNSS Wireless Communication Module

Made by
AcSiP is a certified partner.
Contact this partner →

Description

Platform Features

  • ST micro controller: STM21L073Z
  • High performance ARM Cotext
  • 192 Kbytes of Flash memory
  • 20 Kb of SPRAM
  • Serial wire debug (SWD) & JTAG
  • USB 2.0 full-speed device/host

LoRa Features

  • LoRa chip: Semtech SX1276
  • LoRa Modem
  • +20 dBm constant RF output v.s V supply
  • Programmable bit rate upt ot 37500 bps

GNSS Features

  • GNSS chip: SONY CXD5603GF
  • GPS/GLONASS/GALILEO/BEIDOU receiver
  • Ultra-low power consumption
  • Supports SBAS/QZSS
# EU 863-870
# Modules
# US 902-928

Specifications

Host Interface
UART
Frequency
EU868, US915
Dimension
13 x 11 x 1.55mm
Operating Voltage
3.3V for MCU / LoRa, 1.8V for GNSS
