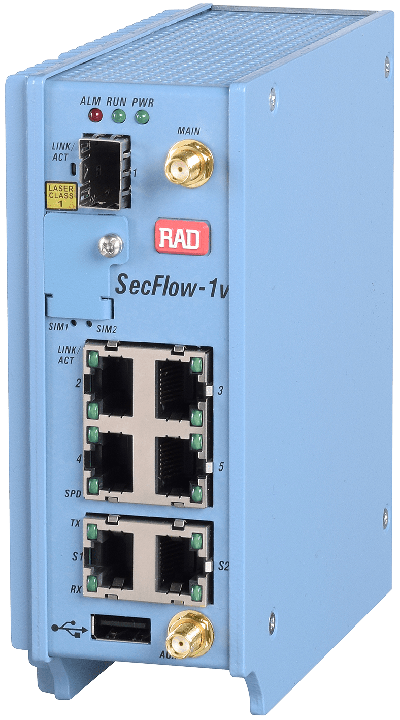

SecFlow 1v

LoRa Industrial IoT gateway with Edge Computing

Made by
RAD is a certified partner.
Contact this partner →

Description

SecFlow 1v -LoRa is a Secure IIoT Gateway with LoRa and Edge Computing!

It is a Ruggedized, multiservice and compact device. It collects data from LoRa sensors and meters and securely delivers it to cloud servers via fiber, Ethernet, 3G/ LTE cellular or unlicensed microwave radio.

# AU 915-928
# End Device
# EU 863-870
# Gateways
# IN 865-870
# Indoor
# US 902-928

Specifications

  • LoRaWAN MODEM: 433MHz/868MHz/915MHz bands
  • SX1301 base band processor, emulating 49 x LoRa demodulators, 10 parallel demodulation paths, 8 uplinks channel and 1 downlink channel
  • Maximum range: Urban: 2~4km /Suburb: 5~10km, Open area: 15km
    -LoRaWAN SERVER (optional) As per specification v1.0.03

Technical details

ETHERNET INTERFACES:
- GbE Port: 4 x 10/100/1G BASE-T,RJ-45 connector,SFP: 1 x 100/1000FX
- POE: 4 GbE copper with up to 2x30W, or 4x15W PoE , 1x60W. Max

SERIAL INTERFACES:
- 2 x RS-232/RS485, :Ports Isolated/non-isolated

CELLULAR MODEM
- Dual SIM cellular modem for HSPA+/EVDO or LTE networks
- FOTA (Firmware upgrade Over the Air)
- NETWORKING:L3 IPSec VPN
- SCADA gateway for IEC101/104,Modbus RTU/TCP and DNP3,

ROUTER:
- Static routing, OSPFv2, BGP, VRF, IPv4,NAT, NAT-T

MANAGEMENT:
- Control Port, Interface: RS-232
- Management Options
- CLI with password-protected access,Web-based interface using HTTP or HTTPS
- USB 2.0: host for software upload
- Tools:TFTP/SFTP, Multiuser TACACS+TIMING,
- Local time setting

SECURITY:
- Stateful Firewall, IPsec AES128 and AES256 GCM encryption,OpenVPN client,PKI with X.509 certification,IKEv1, IKEv2, SHA2

OPERATING TEMPERATURE:
- 40 to 65C (-40 to 149F)

POWER SUPPLY:
- Dual feed DC
