Senlab M - PUL-LAB-13NS - Outdoor water and energy metering (pulse)

Outdoor water and energy metering (pulse)

Made by
Sensing Labs is a certified partner.

Description

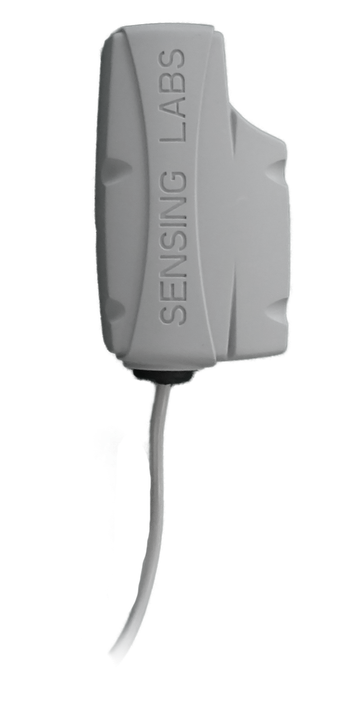

This Senlab M is a smart wireless module, featuring the LoRaWAN™ connectivity protocol, integrates an input sensor for reed-switch (dry contact) pulse emitters.
Senlab M offers a ruggedized IP68 casing and robust wireless connectivity for continuous monitoring in harsh environments;

This Senlab offers best in class features as:
- Battery life time up to 20 years
- Rich Data Content thanks to datalogging (24 datas/radio transmission)
- Radio Performances
- Advanced set of functionalities

Senlab Sensors use innovative LoRaWAN technology to provide very long-range connectivity, high immunity to interference, an optimal data retrieval solution, while minimizing power consumption.
Senlab sensors are compatible with both public and private LoRaWAN network architectures.
Our Sensor-to-Cloud stack is a turn-key data service for fast and easy development of end-to-end solutions: our clients reduce both their time-to-market and development investment, while focusing on creating downstream value-added for customers.

It embeds:
• A range of industrial-grade LPWA wireless sensors, covering a wide range of information collection needs as utility meters, temperature, humidity, presence, passage detection and counting, door opening, machine malfunction alarm, and more
• Gateways for local network implementations
• A Cloud platform with API for the customers to access to data

# EU 863-870
# Industrial IoT
# Logistics

Specifications

  • Plug & Play installation

Product fixing with 2 cable ties on wall or pipe
Provided with 1 meter cable ready du be plugged on pulse emitter
Activation with magnet (LED feedback)

  • High configurability of pulse counting

Standard input for dry contact (including debounce algorithm)
Specific input for open collector circuit
Set/Reset of start index
Wirecut and minimal flowrate information
Log and transmit mode for battery lifetime enhancement (up to 24 compressed logs per transmission)
Stream mode (timestamp for each pulse) for consumption profile analysis
Reconfiguration possible over the air

  • Network configuration

LoRaWAN parameters (OTAA or ABP activation mode, initial datarate,...)
Encryption keys customizable by client
standard LoRaWAN retries support
Radio collisions avoidance by pseudo-randomization of transmissions
Advanced transmission reliability mechanisms (redundancy of data, recovery of lost messages, ...)

Technical details

Technical specifications

Physical specifications
Dimensions 56 x 102 x 35 mm
Weight :140 gr
Operating temperature :-20°C to +70°C
RF spécifications
RF sensitivity : -137dBm
RF power : +14dBm (25mW)
Radio band : 868 MHz
EC Conformity : Compliant with Directive 2014/53/UE (RED)
EMC : Final draft EN 301 489-3 v2.1.1
Draft EN 301 489-1 v2.2.0
Radio : EN 300 220-2 v3.1.1
Magnetic field exposure : EN 62479
Safety : IEC 60950-1, EN 60950-22
