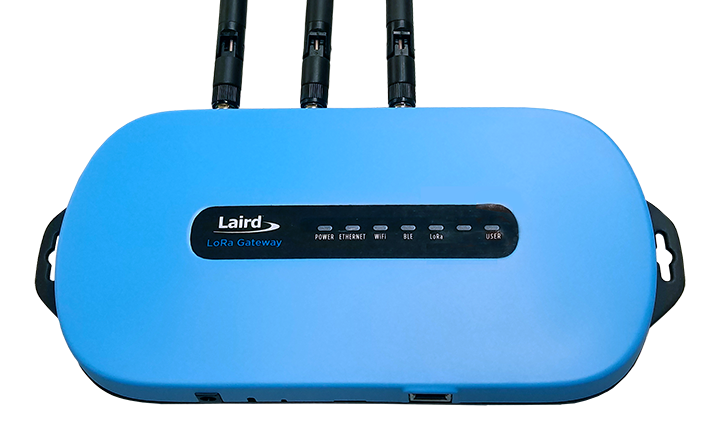

Sentrius RG1xx LoRa-Enabled Gateway

Made by
Laird is a certified partner.

Description

The Sentrius™ RG1xx LoRa-Enabled Gateway from Laird is the ultimate in secure, scalable, robust LoRa solutions for end-to-end control of your private LoRaWAN network. Leveraging Laird’s field-proven and reliable 50 Series “Wireless Bridge” certified module, it also offers enterprise dual-band Wi-Fi, BT v4.0 (BLE and Classic) and wired Ethernet for complete design freedom. Based on the Semtech SX1301/SX1257 chipset designs, it offers a LoRa range up to 10 miles and pre-loaded LoRa Packet Forwarder software, perfect for highly scalable, flexible IoT networks. The Sentrius RG1xx Gateway works with Laird’s Sentrius RM1xx Series LoRa+BLE certified modules for simple out-of-the-box integration, and is compatible with 3rd party Cloud and LoRa partners, as well as any LoRaWAN certified client devices. Laird’s Sentrius RG1xx Gateway gives you multi-protocol connectivity to your long-distance IoT sensors and devices to create actionable IoT intelligence.

# Agriculture
# EU 863-870
# Gateways
# Industrial
# Smart Building
# US 902-928

Specifications

  • Full Linux operating system – Kernel v4.x running on Atmel A5 Core @ 536 MHz
  • Multiple interfaces such as LoRaWAN, 802.11a/b/g/n, Bluetooth v4.0, and Ethernet
  • 8-Channel LoRaWAN support with up to +27dBM max transmit power
  • Comprehensive Certifications for FCC / IC (RG191) and CE (RG186) (all pending)
  • Industrial temperature range (-30º to 70º C)
  • Advanced deployment tools including intuitive web-based configuration, integrated LoRa packet forwarder, and default settings for multiple LoRaWAN Network Server vendors
  • Enterprise-grade security built on Laird’s years of experience in wireless
  • Industry-leading support works directly with Laird engineers to help deploy your design
  • LoRa Network Server pre-sets – The Things Network, Loriot, Stream and Senet
Applications
Smart Metering and Remote Sensing, Industrial Automation / Monitoring and Control, Agricultural and Rural IoT / M2M Applications
Chipset
LoRa: Semtech SX1301/1257. Bluetooth: Cambridge Silicon Radio CSR8811 A08. Wi-Fi: Qualcomm Atheros QCA6004
Compliance
FCC, IC, CE (All Pending)
Dimensions (L x W x H)
275.00 x 133.00 x 30.00 mm (10.83 x 5.24 x 1.18 in)
Frequency
LoRa Frequencies: 863 - 870 MHz (EU), 902 - 928 MHz (US)
Wi-Fi Frequencies: 2.4 and 5 GHz
Operating Systems Supported
Embedded Linux, 4.x Kernel
Product Line
Sentrius Series - RG1xx LoRa-Enabled Gateway
Protocols
Packet Network Forwarder Default support for The Things Network
Security
Wi-Fi: Standards - WEP, WPA, WPA2. Encryption - WEP, TKIP. EAP Types - EAP-FAST, EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAP, PEAP-MSCHAPv2, PEAP-TLS, LEAP
