SEZO A1L

Compact sensor device measuring air quality and other parameters: PM1.0, PM2.5, PM10, temperature, humidity, air pressure, luminosity and noise

Made by
WiRan is a certified partner.
Contact this partner →

Description

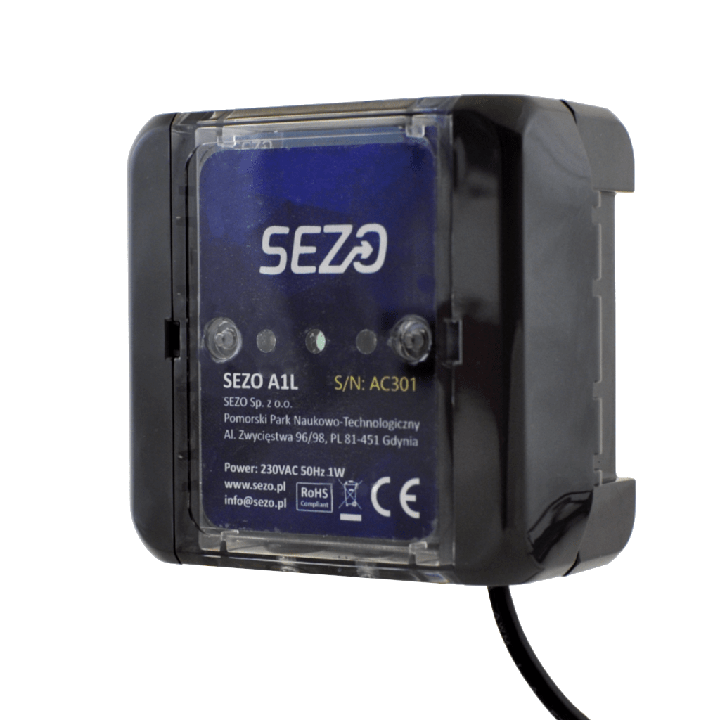

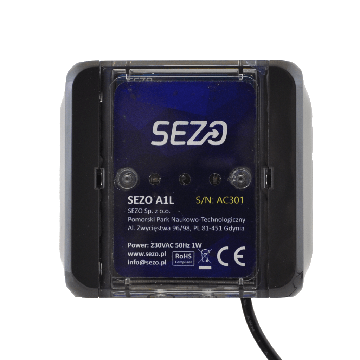

SEZO A1L is a compact sensor and detector device. Its sensors measure temperature, humidity, luminosity, particulate matter concentration and noise. It is also equipped with an accelerometer and a PIR-based motion detector. SEZO A1L is made for indoor or outdoor environment monitoring in different scenarios.

# End Device
# Environment Monitoring
# EU 863-870
# Indoor
# Smart Building

Specifications

MEASURED PARAMETERS: Particulate matter, temperature, humidity, air pressure, luminosity, noise
OPERATING TEMPERATURE: -10 ÷ 60°C
MEASUREMENT RANGE AND ACCURACY:
• Temperature: -10 ÷ 60°C, ±0.3°C
• Humidity: 0 ÷ 100%, ±2%
• Air pressure: 260 ÷ 1260 hPa, ±0.1 hPa
• Luminosity: 0 ÷ 1000 lx
• PM: 0 ÷ 500 µg/m3, ±10 µg/m3 @<100 µg/m3
COMMUNICATION PROTOCOL: LoRaWAN v1.0.2, Class A device
FREQUENCY AND TRANSMISSION POWER: 868 MHz, maximum 14 dBm
DATA TRANSMISSION INTERVAL: Default 15 minutes (configurable) or event-triggered
POWER SUPPLY: AC adapter ̴230V 50Hz
ENCLOSURE AND MOUNTING: IP67, polycarbonate, four screw holes
WEIGHT: 170 g (without AC adapter and power cable)
PRODUCT DIMENSIONS: Length 89 mm, width 80 mm, height 48.5 mm

Technical details

Further details and product options available on request.
