SEZO Sensor Devices
Contact WiRan
SEZO EL
Compact sensor and detector device covering temperature, humidity, luminosity, noise, accelerometer and PIR-based motion detector.
Made by
WiRan is a certified partner.
Description

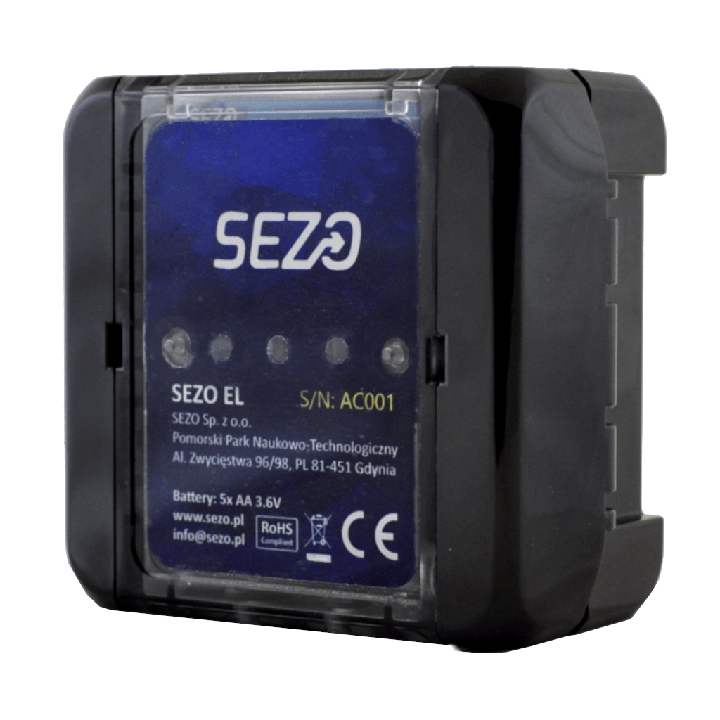

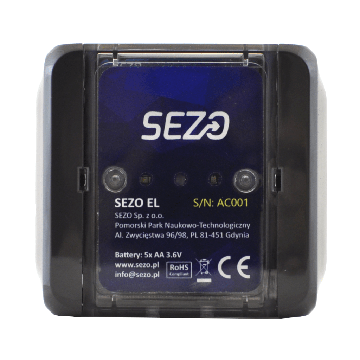

SEZO EL is a compact sensor and detector device. Its sensors measure temperature, humidity, luminosity and noise. It is also equipped with an accelerometer and a PIR-based motion detector. SEZO EL is made for outdoor environment monitoring in different scenarios including sub-zero temperatures.
Specifications
MEASURED PARAMETERS: Temperature, humidity, air pressure, luminosity, noise, acceleration, motion (PIR)
OPERATING TEMPERATURE: -30 ÷ 60°C
MEASUREMENT RANGE AND ACCURACY:
• Temperature: -30 ÷ 60°C, ±0.3°C
• Humidity: 0 ÷ 100%, ±2%
• Air pressure: 260 ÷ 1260 hPa, ±0.1 hPa
• Luminosity: 0 ÷ 1000 lx
COMMUNICATION PROTOCOL: LoRaWAN v1.0.2, Class A device
FREQUENCY AND TRANSMISSION POWER: 868 MHz, maximum 14 dBm
DATA TRANSMISSION INTERVAL: Default 15 minutes (configurable) or event-triggered
BATTERY: 5 x LS 14500 (13000 mAh), optional 10 x LS 14500
ENCLOSURE AND MOUNTING: IP67, polycarbonate, four screw holes
WEIGHT: 225 g with standard battery setup
PRODUCT DIMENSIONS: Length 89 mm, width 80 mm, height 48.5 mm
Technical details
Further details and product options available on request.
