SKYIND

Skysens Industrial Bridge

Made by
Skysens is a certified partner.
Contact this partner →

Description

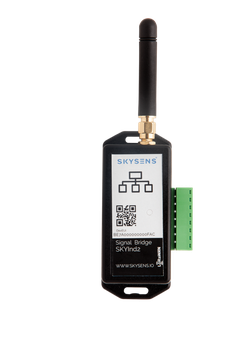

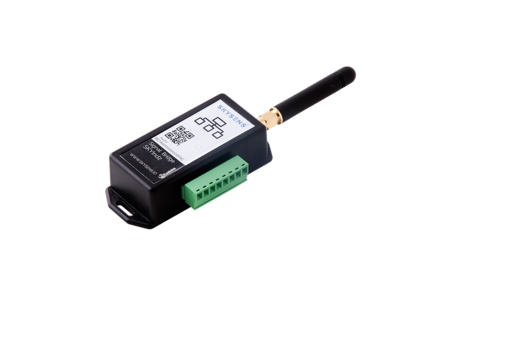

Completely programmable LoRaWAN bridge device with RS485, RS232, Digital, Analog, Pulse Interfaces with Modbus and IEC protocols.

# End Device
# EU 863-870
# Indoor
# Industrial IoT
# Logistics
# Outdoor
# Smart Building
# Smart City

Specifications

  • Up to 10 years of battery life
  • Indoor and outdoor use with outdoor casing
  • Excellent long-term stability
  • LED interface
  • Changeable sensor reading interval from network
  • Easy integration with existing infrastructure.
  • Ready with Software Application

Technical details



  • Dimensions - 35 x 85 x 23.3 mm
  • Weight - 150 gr (apprx)
  • Casing - ABS
  • Antenna - +1.5 dBi external
  • Battery - 1 1/2 AA battery or 5v1A Supply
  • Expected Battery Life - min 5 year with 30 min interval
  • Available Frequencies - All
  • Working Range
  • Temperature - -60 °C +85°C
  • Moisture - 0%-100% RH,
