Springhare

The future of data logging

Made by
Factorylab is a certified partner.
Contact this partner →

Description

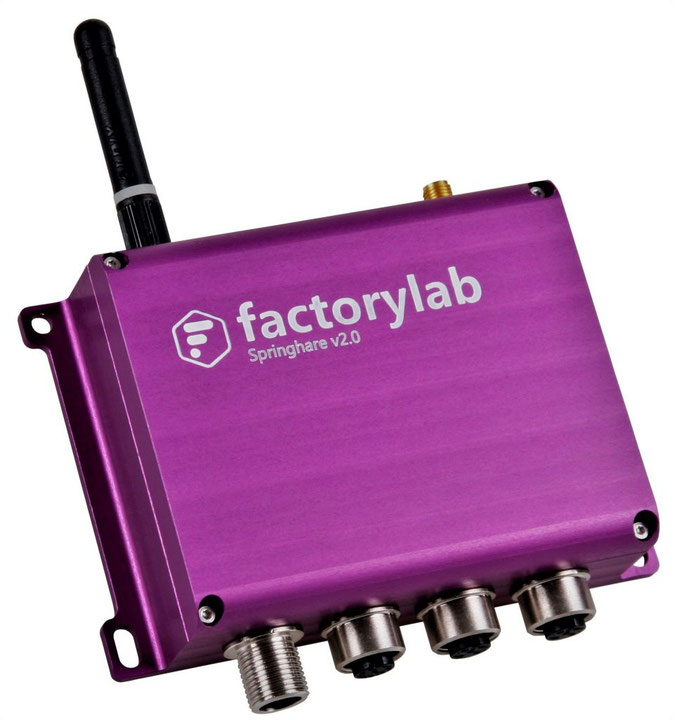

The Springhare Industry V2.0 is the most complete data logger of its kind. In its industrial plastic or aluminium housing with M12 connectors, it can be used in any situation. The Springhare communicates via LoRa or 4G and is equipped with GPS, 6 digital inputs, an accelerometer, 2x 4-20 mA inputs and a switchable 24VDC output. In addition, it has an RS232 and RS485 serial interface with support for ModBus and CanBus protocols.

Due to its extremely energy efficient Atmel processor, the Springhare can be used for a very long time, powered only by a built-in battery. For applications in places that are difficult to access, the Springhare can be powered externally through a solar panel, which can even be installed on the housing.

# EU 863-870
# Industrial IoT
# US 902-928

Specifications

Technical details

General

  • Processor: 32-Bit ARM Cortex M0+ (Atmel SAM-C)
  • LoRa Radio: RN2483
  • GPS: on-board, active antenna (external)
  • Dimensions: 115 x 90 x 32 mm

Environment

  • Temperature: -25 to +70 °C.
  • Humidity: 5 – 95%
  • Housing: Aluminium
  • Ingress Protection: IP67

Communication

  • LoRaWan: 868 / 915 MHz
  • Antenna: External
  • GPRS: Optional

Power

  • Internal: Battery Li-Ion 3.7V (lifespan of up to 5 years)
  • Solar external: Max. 6 V 100 mA
  • External: 5 – 30 V

Connectors

  • M12 connector 4-pin: Power supply/solar
  • M12 connector 5-pin: Analogue inputs
  • M12 connector 8-pin: Digital inputs
  • M12 connector 12 pin: Bus connectivity

Connections

  • Digital inputs: 7x
  • Analog inputs: 3x 4-20mA
  • Serial inputs: Canbus, RS232, RS422, RS485, Modbus
