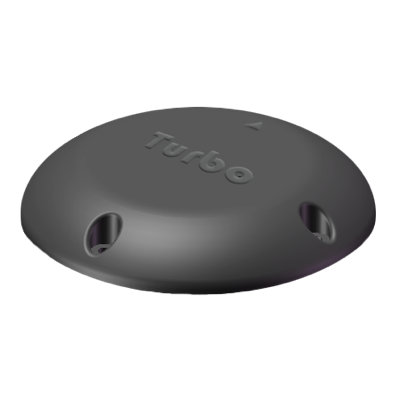

TBS-220

Wireless geomagnetic vehicle detector

Made by
Turbo is a certified partner.

Description

TBS-220 geomagnetic vehicle detector is compatible with LoRaWAN™ technology, adopts advanced magnetic sensor and signal detection algorithm, be able to detect the vehiclepresences. TBS-220 can be widely used in many areas such as smart parking, smart traffic, smart community.

Key features

  • Ready to install, high reliability
  • Low setup and maintenance cost
  • 4 years' life time of detector's battery

Application scenarios:

  • Office park
  • On-street parking lots
  • Others
# End Device
# EU 863-870
# Outdoor
# Smart City
# US 902-928

Specifications

RF PARAMETERS
Working frequency
EU868MHz / AS923MHz
Transmit power
17dBm
Transmission distance
maximum 500m
FUNCTION
Communication standard
LoRaWAN™ Class A
Detection accuracy
> 99%
Detection algorithm
three axis joint detecting algorithm
Installation mode
surface mount
Upgrade mode
wireless upgrade
Parameters adjustment
sensitivity, heartbeat intervals
Calibration function
power on calibration, command calibration
Status monitoring
low voltage alarm, disturbance alarm
PHYSICAL PARAMETERS
Power supply
DC 3.6V Lithium thionyl chloride battery
Power switch
control by magnetic strip
Life time
4 years
IP grade
IP68
Working temp
-40℃ ~ 85℃
Working humidity
10%~100%
Size
diameter 150mm，height 25.5mm
Weight
450 g
Resistance
5 ton
