TYNESS ENERGY

Pulse counting, TIC and extension

Made by
Ewattch is a certified partner.
Contact this partner →

Description

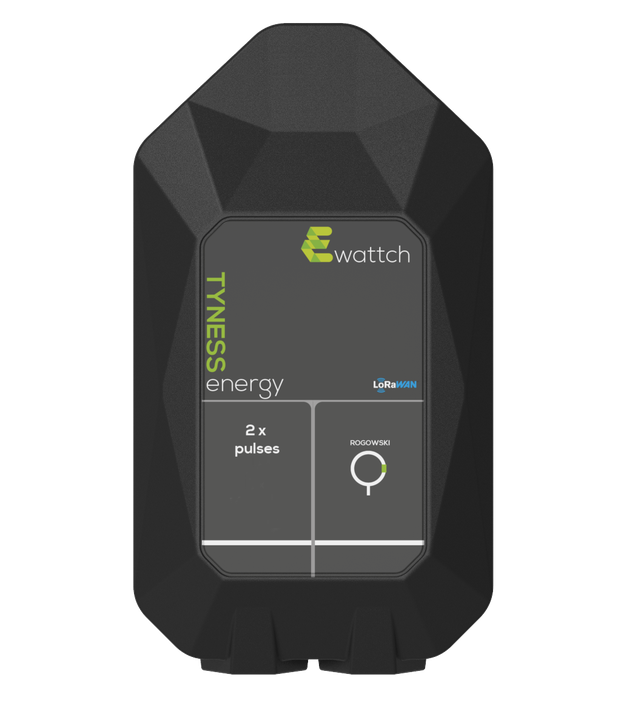

The TYNESS-ENERGY is a sensor which allows all the pulse meters and electronic meters to communicate.

Two inputs permit data communication with all types of meters having a pulse output: water, electricity, calories, etc.

An optical sensor is available as an option to retrieve consumption data from the indicator lights of the different meters.

Finally, an extension allows an additional board to be added in order to expand the capacities of the Tyness: PT100, MBUS, current measurement, etc.

# End Device
# EU 863-870
# Industrial IoT
# LoRaWAN Certified
# Smart Building

Specifications



CHARACTERISTICS

  • 2 pulse count inputs (dry contact)
  • 1 additional card slot
  • Integrated antenna
  • LoRa® or LoRaWAN ™ wireless communication
  • 2 possible power modes:
    • External power supply: 5VDC to 12VDC
    • External battery pack : 3.6 VDC lithium battery 19Ah (option)
  • Dimensions: 142 x 77 x 36 mm
  • Operating temperature: 0 ° C to + 50 ° C
  • DIN rail or wall mounting
  • CE approval and RoHs standard
  • LoRaWAN certified product
  • With the GPRS option, the Tyness also becomes a LoRa® gateway

Technical details

The products alone:

Works on battery or external power supply.

TYNESS-ENERGY-LORAWAN ™
Product allowing communication with 2 pulse meters. One slot for an additional board can expand Tyness’s capacities with other functions: PT100, MBUS, current measurement, etc. Operating with battery or external power supply. This sensor is communicating in LoRaWAN.

TYNESS-ENERGY-GPRS
Same as the LoRaWAN version , but with a GPRS module, allowing direct communication with a web platform (eg EwattchCloud or a third party platform) without gateway.
