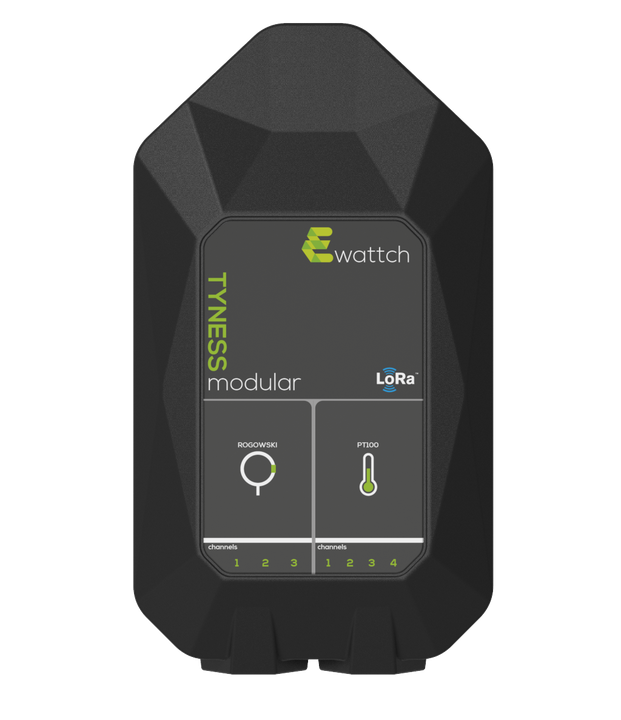

TYNESS-MODULAR

Upgradeable and multifunction sensor

Made by
Ewattch is a certified partner.
Contact this partner →

Description

The TYNESS is a multifunctional and modular sensor for composing your ideal connected sensor. It allows to adapt to the most complex needs.

Combine up to 2 different measurement functions.

Our sensor TYNESS Modular allows for example the measurement of current, active / reactive power, the use of an optical sensor, the measurement of temperature PT100, or the addition of a 4-20mA / 0-10V interface, a relay output, an M-BUS protocol ....

With the Tyness Modular, compose the sensor that meets your needs!

# End Device
# EU 863-870
# LoRaWAN Certified

Specifications



CHARACTERISTICS

  • 2 additional card slots available (feel free to ask us about our available boards)
  • LoRaWAN ™ wireless communication
  • Integrated antenna (available on request with integrated antenna)
  • 2 possible power modes:
    • External power supply: 5VDC to 12VDC
    • External battery pack : 3.6 VDC lithium battery 19Ah (option)
  • 4 mounting modes: with magnets, DIN rail, wall mount or double sided
  • Dimensions: 142 x 77 x 36 mm
  • Operating temperature: 0 ° C to + 50 ° C
  • Quality and industrial design
  • CE approval and RoHs standard
  • LoRaWAN certified product
  • With its GPRS option, the Tyness also becomes a stand-alone gateway (no need for ToolBox).

Technical details

The products alone:

TYNESS-MODULAR-LORAWAN: Same as LoRaWAN ™ version

TYNESS-MODULAR-GPRS: TyNess main board for connecting up to 2 additional boards, with GPRS module allowing direct communication with a web platform (eg EwattchCloud or a third party platform) without using a gateway.
