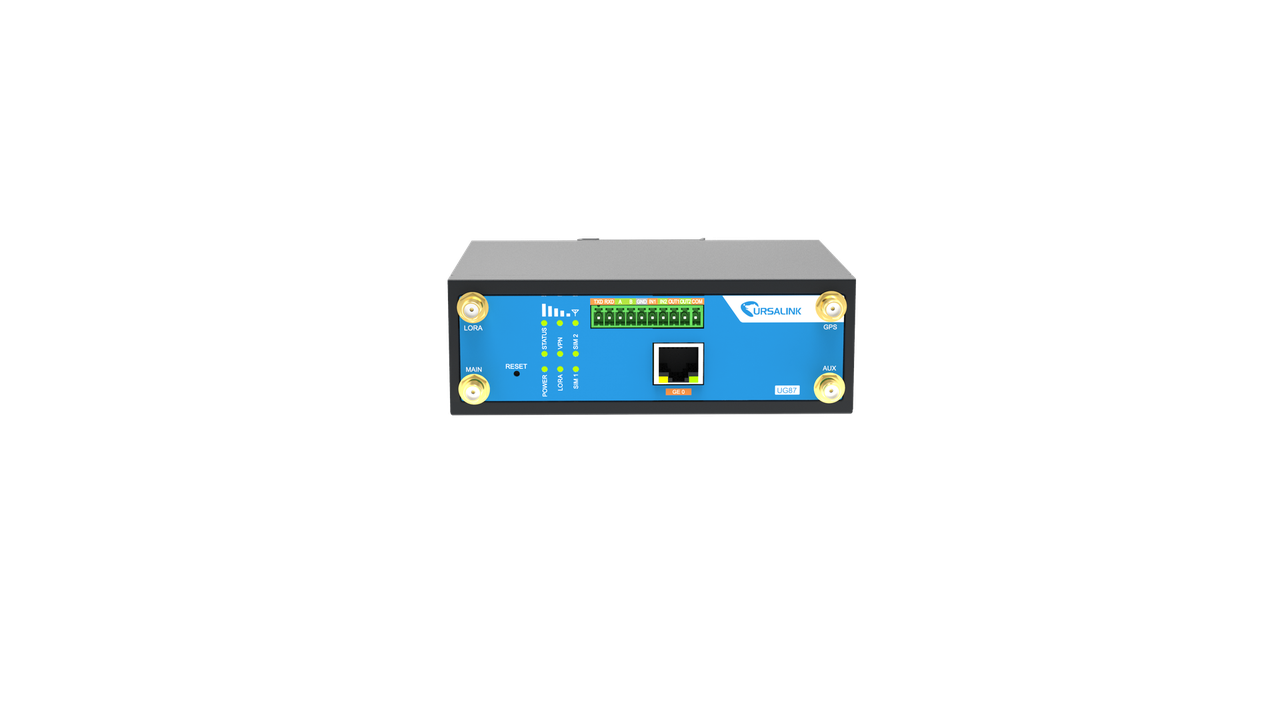

UG87-IN LoRaWAN Gateway

We Connect Things to Cloud

Made by
Ursalink is a certified partner.

Description

The Ursalink UG87-Indoor is very suitable for small business or private area use case like parking space, exhibition center or campus etc. It is also perfect for providing network coverage for indoor blind spots.

The Ursalink UG87-Outdoor has an IP67 enclosure for harsh outdoor environments, it is designed for wide area smart city applications such as smart metering, fleet management, streetlight monitoring, etc.

# AS 923
# AU 915-928
# CN 470-510
# EU 863-870
# Gateways
# US 902-928

Specifications

  • Integrated with Multiple Network Servers
  • IP67 Waterproof Casing (outdoor version)
  • Up to 8 Simultaneous Channels
  • Compliance to LoRaWAN Class A and Class C
  • Backhaul Connectivity (Eth/3G/4G)
  • Long Range over 5km Radius
  • Built-in DI/DO, Serial Port and GPS
  • Optional Embedded Network Server

Technical details

Hardware

  • Processor - 800 MHz, 64-bit ARM Cortex-A53
  • Memory - 4 GB Flash, 512 MB DDR3 RAM
  • Power Supply - 9-48 VDC Input
  • Dimensions - 132 x 103.8 x 45 mm (5.20 x 4.09 x 1.77 in) 254 x 222 x 89 mm (10 x 8.75 x 3.5 in)

Software

  • Network Protocol - PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
  • VPN Tunnel - OpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE
  • Serial Port - {}Transparent, TCP Client/Server, UDP, Modbus Gateway

Connectivity

  • Ethernet - 1 × WAN or 1 × LAN
  • Cellular - 2 × SIM Slot, Support for Global GSM/3G/4G LTE Frequency Bands
  • Serial - 1 × RS232
  • Digital - 2 × DI + 2 × DO

LoRaWAN

  • Channel 8
  • Frequency Band - EU433, EU868, US902, AU915, CN470, AS923, KR920
  • Sensitivity - -140dBm Sensitivity @292bps
  • Output Power - 27dBm Max
  • Protocol - V1.0 Class A/Class C and V1.0.2 Class A/Class C

Environmental

  • Operating Temperature - -40°C to +70°C (-40℉ to +158℉) Reduced cellular performance above 60°C
  • Storage Temperature - -40°C to +85°C (-40℉ to +185℉)
  • Relative Humidity - 0% to 95% (non-condensing) at 25°C/77℉
  • Ingress Protection - IP30,IP67
  • Mounting - Desktop, Wall or DIN Rail Mounting Wall or Pole Mounting
